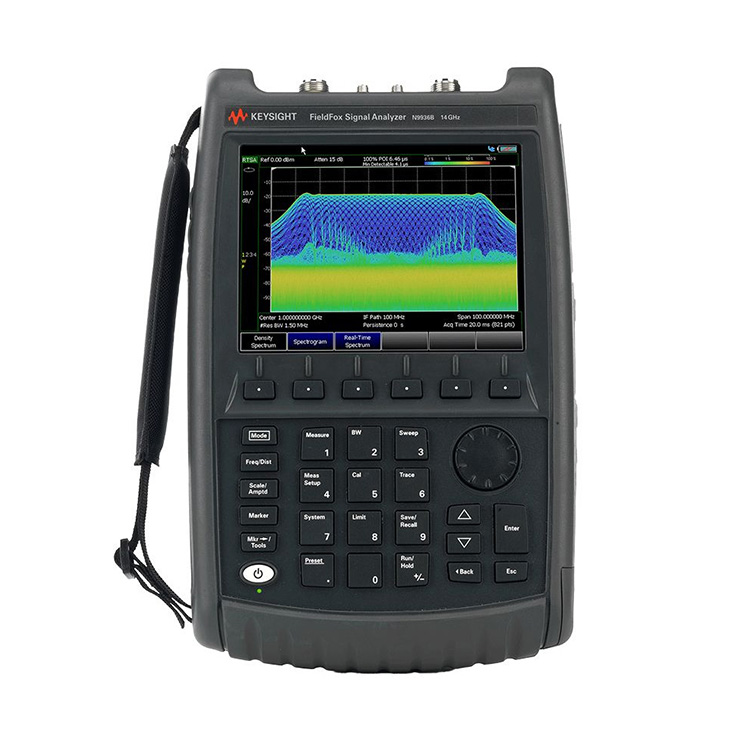

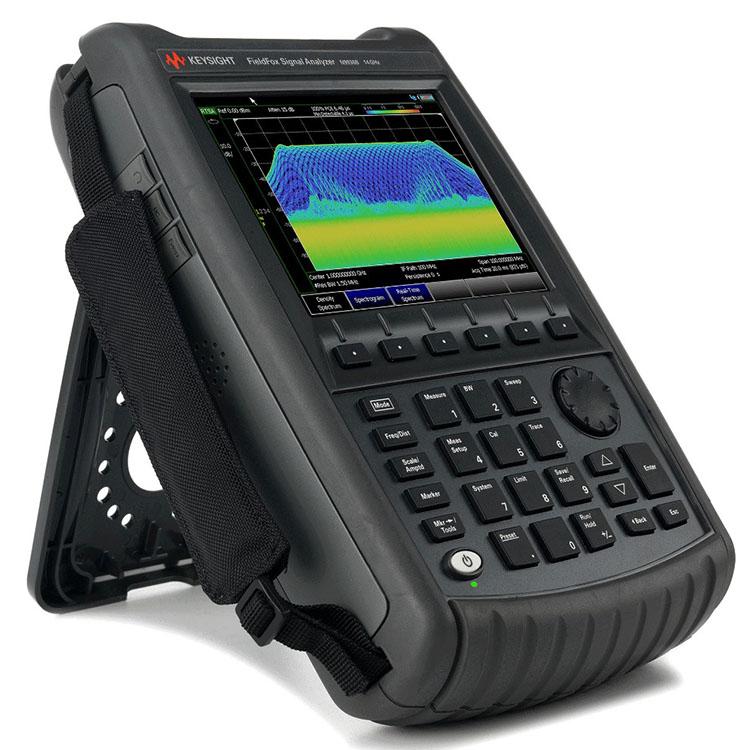

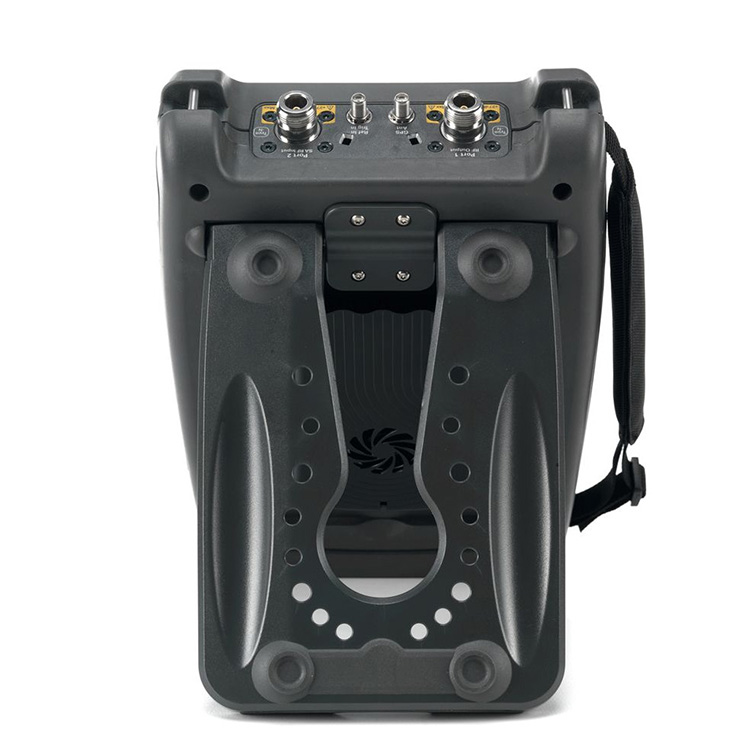

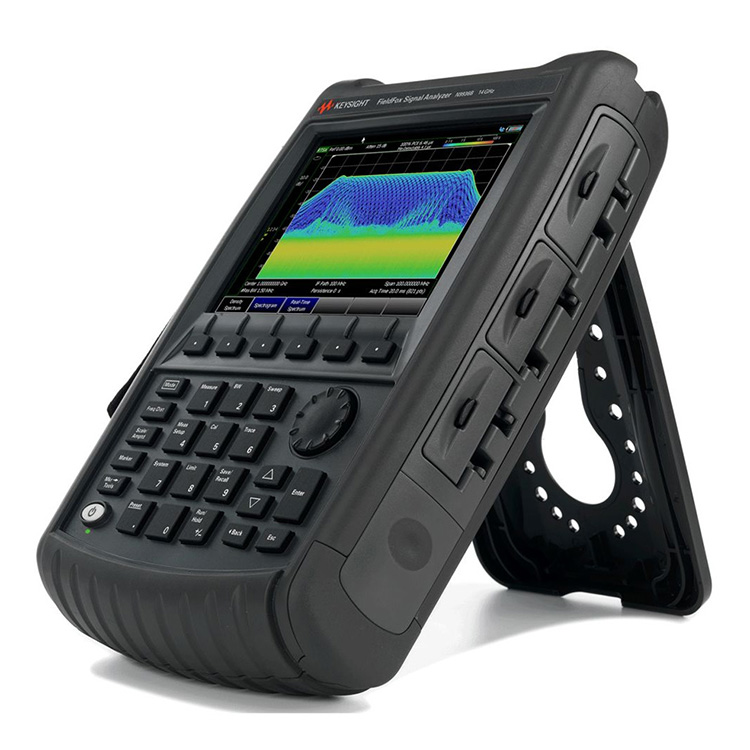

As a professional high quality N9936B FieldFox Handheld Microwave Spectrum Analyzer manufacturer, N9936B is a portable battery-operated microwave spectrum analyzer; configurations also include full band tracking generator and preamplifier, interference analyzer, time gating, VSWR and reflection measurements, and built-in power meter.A lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier, power meter, and more
Never Sacrifice Capability or Portability
As a professional high quality N9936B FieldFox Handheld Microwave Spectrum Analyzer manufacturer, Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup.
Capture intermittent signals with 120 MHz gap-free, real-time bandwidth.
Characterize radar pulse profiles with a portable solution.
Perform over-the-air measurements for 5G NR and LTE.
Capture I/Q data for RF signal monitoring and analysis.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.4 kg (7.4 lb).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional SA Based Features: |
Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA) |
| Applications: |
AM/FM Tune and Listen Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response 89600 VSA Software Over-The-Air LTE FDD and 5GTF 5G NR |
| Bandwidth: | 110 MHz |
| Bandwidth Options: |
10 MHz 40 MHz 120 MHz |
| Cable and Antenna Analyzer: | No |
| DANL @1 GHz: | -163 dBm |
| Form Factor: | n/a |
| Instrument Type: | Spectrum Analyzer |
| Maximum Analysis Bandwidth: | 120 MHz |
| Maximum Frequency: | 14 GHz |

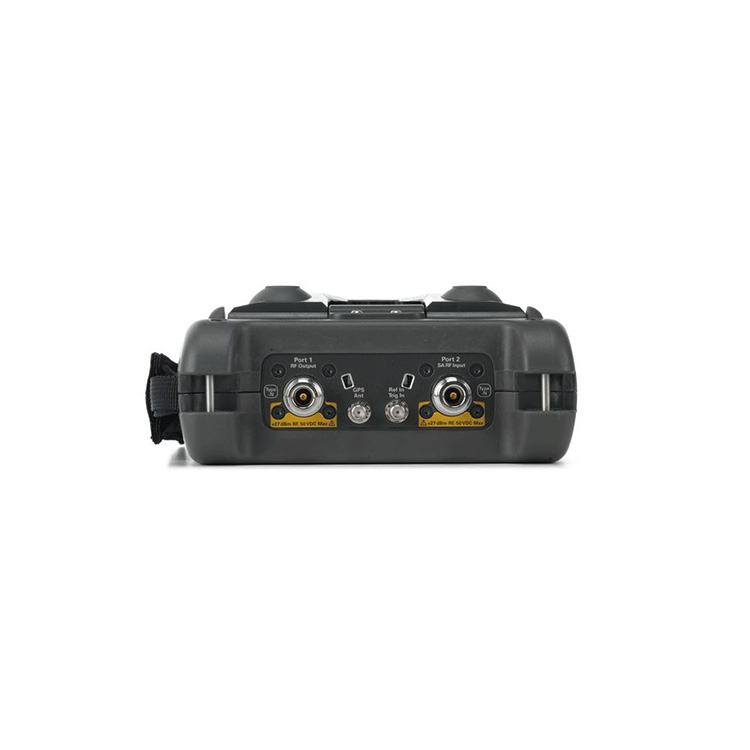

| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 1 dBm |
| Overall Amplitude Accuracy: | ±0.2 dB |
| Phase Noise @1 GHz (1 MHz offset): | -124 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -117 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -115 dBc/Hz |
| Power Measurement Using USB Sensor: |
Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Standard |
| Standard Attenuator Range: | 40 dB |
| Standard Attenuator Step: | 5 dB |
| System Features: |
GPS Receiver - Internal Only Remote Control Capability Built-In DC Source |
| Trace Update 100 MHz Span: | 25 Updates Per Second |
| Type: | Handheld |
| Vector Network Analyzer: | No |
