You can rest assured to buy N9321C Basic RF Spectrum Analyzers from our factory and we will offer you the best after-sale service and timely delivery. Input Connector: These instruments have an input connector (often an SMA or BNC connector) to connect the RF signal source or antenna to the analyzer.
Outperform Expectations in Your Essential RF Applications

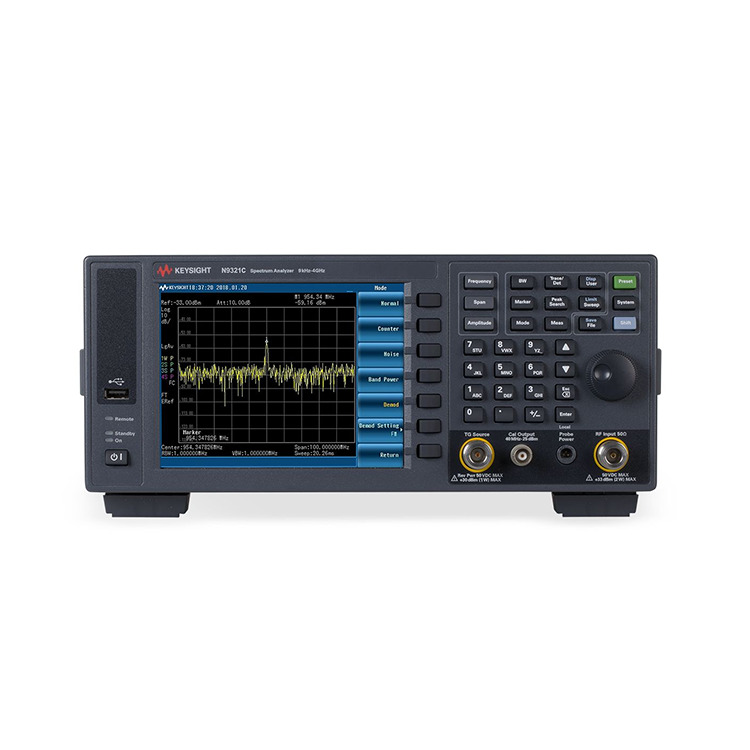

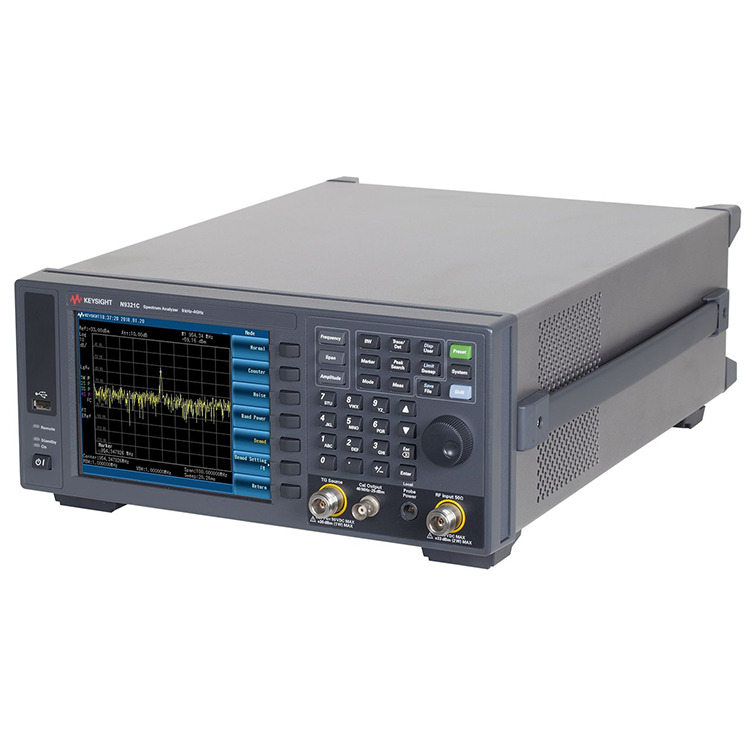

Built to address your essential applications, the N9321C Basic RF Spectrum Analyzers (BSA) offers proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements.
Provides fast RF spectrum analysis from 9 kHz to 4 GHz
Comes equipped with a tracking generator and built-in VSWR bridge for transmission and reflection tests
Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
Supports AM / FM, ASK / FSK demodulation analysis suites for Internet of Things transmitter characterization
Enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature
Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
| DANL @1 GHz: | -152 dBm |
| Frequency: | 9 kHz to 4 GHz |
| Frequency Options: | 9 kHz to 4 GHz |
| Maximum Analysis Bandwidth: | 1 MHz |
| Maximum Frequency: | 4 GHz |
| Overall Amplitude Accuracy: | ±0.6 dB |
| Performance Level: | ◆◇◇◇◇◇ |
| Phase Noise @1 GHz (10 kHz offset): | -90 dBc/Hz |
| Standard Attenuator Step: | 1 dB |
| TOI @1 GHz (3rd Order Intercept): | +15 dBm |
| Triggering: | RF Burst |
| External | Video |
| Type: | Benchtop |
