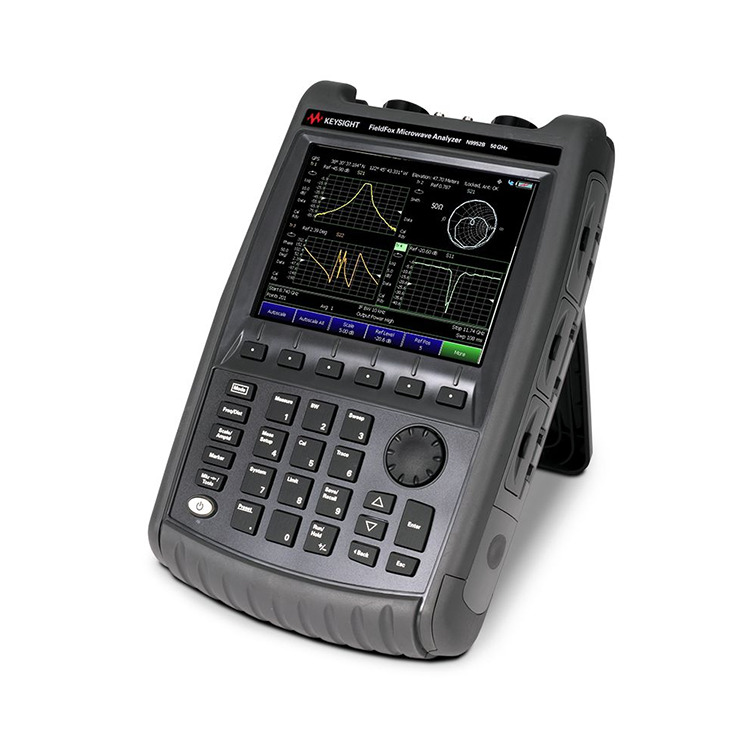

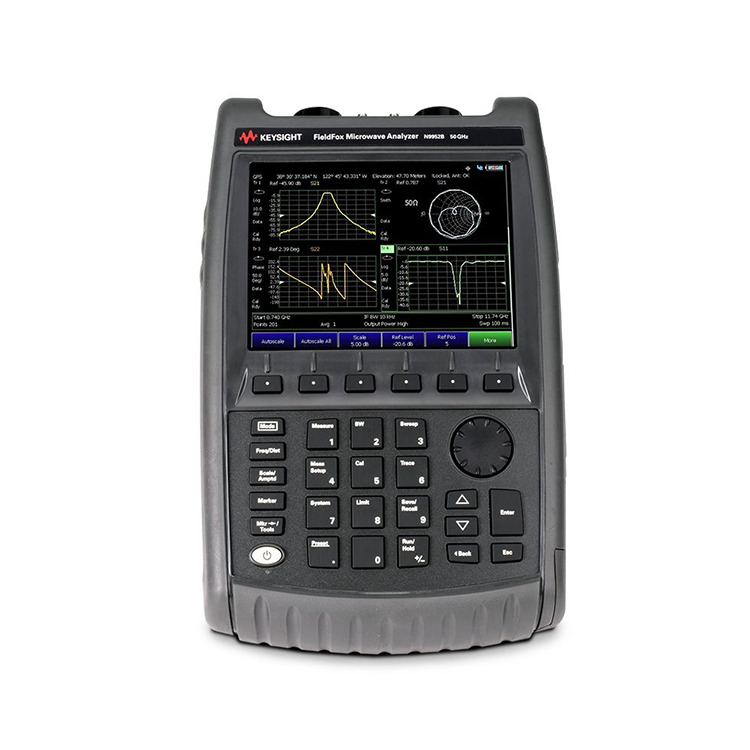

N9952B FieldFox Handheld Microwave Spectrum Analyzer
  • N9952B FieldFox Handheld Microwave Spectrum AnalyzerN9952B FieldFox Handheld Microwave Spectrum Analyzer
  • N9952B FieldFox Handheld Microwave Spectrum AnalyzerN9952B FieldFox Handheld Microwave Spectrum Analyzer
  • N9952B FieldFox Handheld Microwave Spectrum AnalyzerN9952B FieldFox Handheld Microwave Spectrum Analyzer

N9952B FieldFox Handheld Microwave Spectrum Analyzer

As the professional manufacturer, we would like to provide you high quality N9952B FieldFox Handheld Microwave Spectrum Analyzer. And we will offer you the best after-sale service and timely delivery. In recent years, our factory has continuously expanded its production force and further tightened its technical strength, and has formed a benign enterprise operation mechanism. Welcome customers at home and abroad to cooperate sincerely and create brilliance together.

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you high quality N9952B FieldFox Handheld Microwave Spectrum Analyzer. The specific features and capabilities of FieldFox models can vary depending on the chosen model and options. Engineers and technicians can select the model that best suits their measurement requirements and field conditions.

Highlights

Never Sacrifice Capability or Portability

N9952B FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the software-enabled FieldFox configuration that best meets your needs.

Base model includes a cable and antenna tester (CAT)

Add software-defined measurement functions according to your needs.

Capture elusive signals with 120 MHz gap-free, real-time bandwidth.

Measure all four S-parameters simultaneously with 105 dB dynamic range.

Make accurate spectrum analyzer measurements (± 0.2 dB) without warmup.

Perform over-the-air measurements for 5G NR and LTE.

Use GPS/GNSS for geolocation and timestamping.

Carry one lightweight unit at 3.4 kg (7.4 lb).


Key Specifications

Additional CAT/VNA Based Features: Mixed-Mode S-Parameters
DTF/TDR Cable Measurements Vector Voltmeter
Additional SA Based Features: Real-Time Spectrum Analysis
Noise Figure Measurements Over-The-Air Measurements
Built-In Power Meter Extended Range Transmission Analysis (ERTA)
Applications: AM/FM Tune and Listen
Cable and Antenna Analysis Field Strength Measurement
SCPI Code Compatibility Spectrogram
Stimulus Response 89600 VSA Software
Over-The-Air LTE FDD and 5GTF 5G NR
Bandwidth Options: 10 MHz
40 MHz 120 MHz
Best Speed at 1001 Point, 1 Sweep: 196 μs/pt
Cable and Antenna Analyzer: Yes - Standard
DANL @1 GHz: -163 dBm
Frequency Range: DC to 50 GHz
Instrument Type: Combination Analyzer
Maximum Analysis Bandwidth: 120 MHz
Maximum Frequency: 50 GHz
Maximum Real-Time Bandwidth: 120 MHz
Minimum Frequency: 300 kHz
Number of Built-In Ports: 2 ports
Number of built-in ports: 2 ports
Output Power: Up to 7 dBm
Overall Amplitude Accuracy: +/- 0.2 dB
Overall Amplitude Accuracy: +/- 0.2 dB
Phase Noise @1 GHz (1 MHz offset): -125 dBc/Hz
Phase Noise @1 GHz (10 kHz offset): -114 dBc/Hz
Phase Noise @1 GHz (30 kHz offset): -114 dBc/Hz
Phase Noise at 1 GHz, 1 MHz offset: -125 dBc/Hz
Phase Noise at 1 GHz 10 kHz offset: -114 dBc/Hz
Power Measurement Using USB Sensor: Frequency-Offset
CW or Swept-Frequency RF Pulse Test with Peak Sensor
SA Start Frequency: 5 kHz
Spectrum Analyzer: Yes - Optional
Spur Free Dynamic Range: > 104 dB
Standard Attenuator Range: 40 dB
Standard Attenuator Step: 5 dB
Standard Attenuator Step: 5 dB
System Dynamic Range: > 105 dB
System Features: GPS Receiver - Internal Only
Remote Control Capability Built-In DC Source
Type: Handheld
TOI @1 GHz (3rd Order Intercept): + 5.1 dBm
Trace Noise: 0.001 dB
Type: Handheld
Vector Network Analyzer: Yes - Optional
