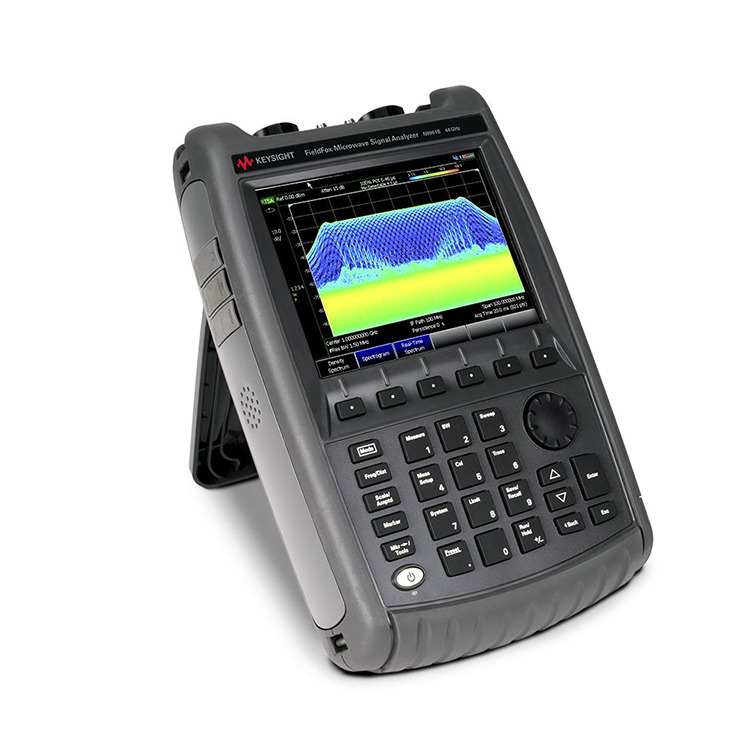

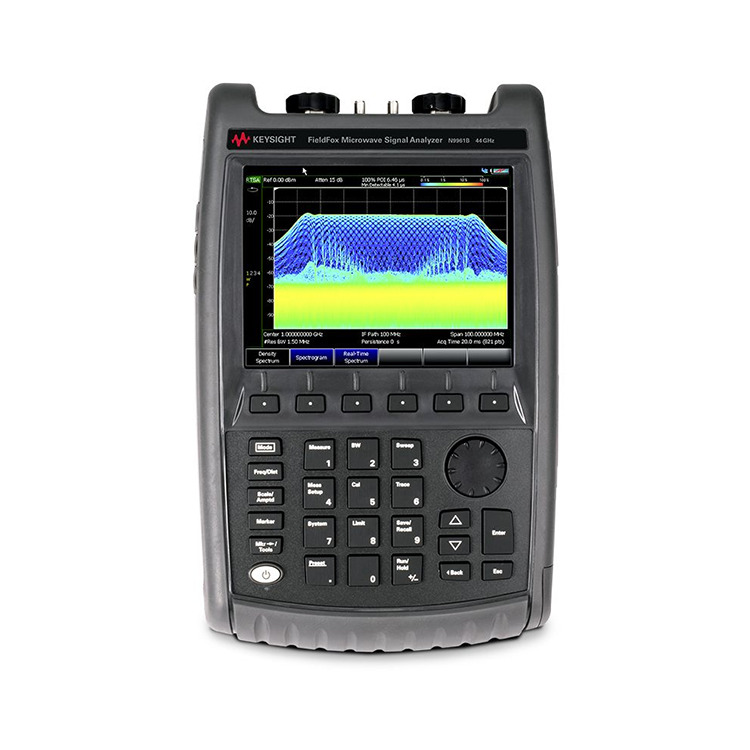

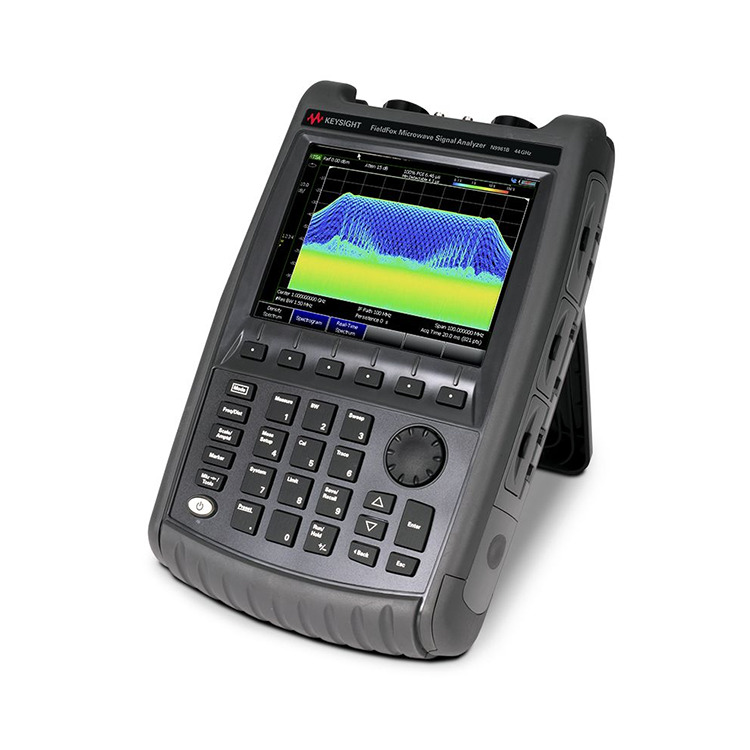

N9961B FieldFox Handheld Microwave Spectrum Analyzer

You can rest assured to buy customized N9961B FieldFox Handheld Microwave Spectrum Analyzer from us. And have gained the trust of customers in many countries at home and abroad due to their obvious advantages in terms of product quality and delivery time.

Send Inquiry

Product Description

You can rest assured to buy customized N9961B FieldFox Handheld Microwave Spectrum Analyzer from us. Portability: As a handheld device, it is lightweight and easy to carry, making it suitable for on-site measurements and field testing. Its rugged design ensures durability in various environmental conditions.

Highlights

Never Sacrifice Capability or Portability

N9961B FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the software-enabled FieldFox configuration that best meets your needs.

Base model includes a signal analyzer

Add software-defined measurement functions according to your needs.

Capture elusive signals with 120 MHz of gap-free, real-time bandwidth.

Characterize radar pulse profiles with a portable solution.

Make accurate spectrum analyzer measurements (± 0.2 dB) without warmup.

Perform over-the-air measurements for 5G NR and LTE.

Use GPS/GNSS for geolocation and timestamping.

Analyze I/Q data for RF signal monitoring and analysis.

Carry one lightweight unit at 3.4 kg (7.4 lb).


Key Specifications

Additional SA Based Features: Real-Time Spectrum Analysis
Noise Figure Measurements Over-The-Air Measurements
Built-In Power Meter Extended Range Transmission Analysis (ERTA)
Applications: AM/FM Tune and Listen
Cable and Antenna Analysis Field Strength Measurement
SCPI Code Compatibility Spectrogram
Stimulus Response 89600 VSA Software
Over-The-Air LTE FDD and 5GTF 5G NR
Bandwidth Options: 10 MHz
40 MHz 120 MHz
Cable and Antenna Analyzer: No
DANL @1 GHz: -163 dBm
Frequency Range: DC to 44 GHz
Instrument Type: Signal Analyzer
Maximum Analysis Bandwidth: 120 MHz
Maximum Frequency: 44 GHz
Maximum Real-Time Bandwidth: 120 MHz
Number of Built-In Ports: 2 ports
Number of built-in ports: 2 ports
Output Power: Up to 6 dBm
Overall Amplitude Accuracy: +/- 0.2 dB
Overall Amplitude Accuracy: +/- 0.2 dB
Phase Noise @1 GHz (1 MHz offset): -125 dBc/Hz
Phase Noise @1 GHz (10 kHz offset): -114 dBc/Hz
Phase Noise @1 GHz (30 kHz offset): -114 dBc/Hz
Phase Noise at 1 GHz, 1 MHz offset: -125 dBc/Hz
Phase Noise at 1 GHz 10 kHz offset: -114 dBc/Hz
Power Measurement Using USB Sensor: Frequency-Offset
CW or Swept-Frequency RF Pulse Test with Peak Sensor
SA Start Frequency: 5 kHz
Spectrum Analyzer: Yes - Standard
Spur Free Dynamic Range: > 104 dB
Standard Attenuator Range: 40 dB
Standard Attenuator Step: 5 dB
Standard Attenuator Step: 5 dB
System Features: GPS Receiver - Internal Only
Remote Control Capability Built-In DC Source
Type: Handheld
TOI @1 GHz (3rd Order Intercept): + 5.1 dBm
Type: Handheld
Vector Network Analyzer: No
