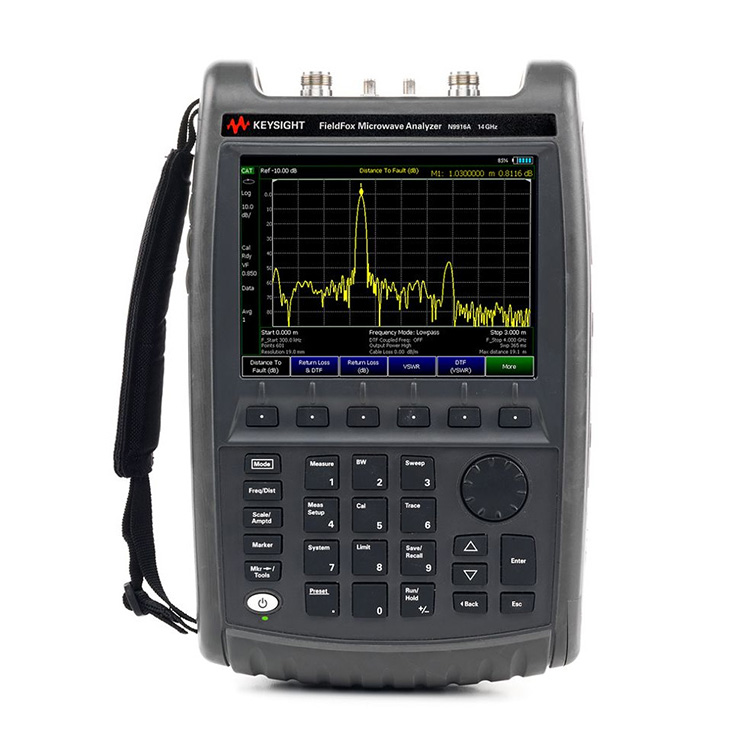

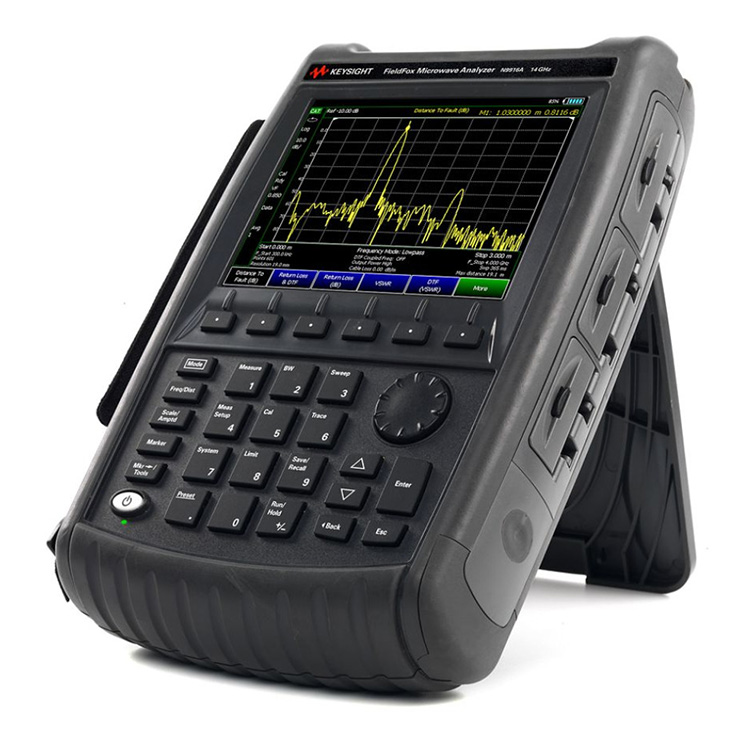

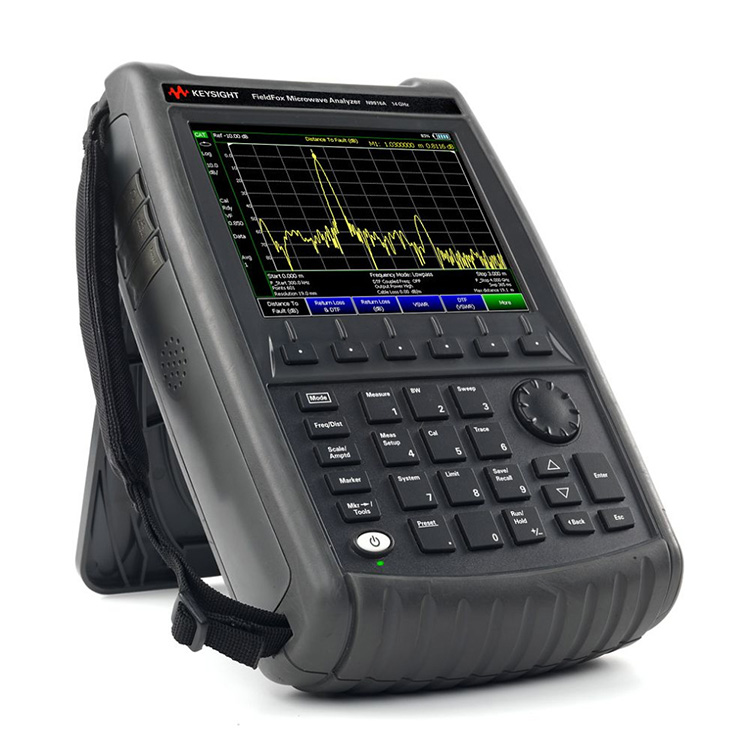

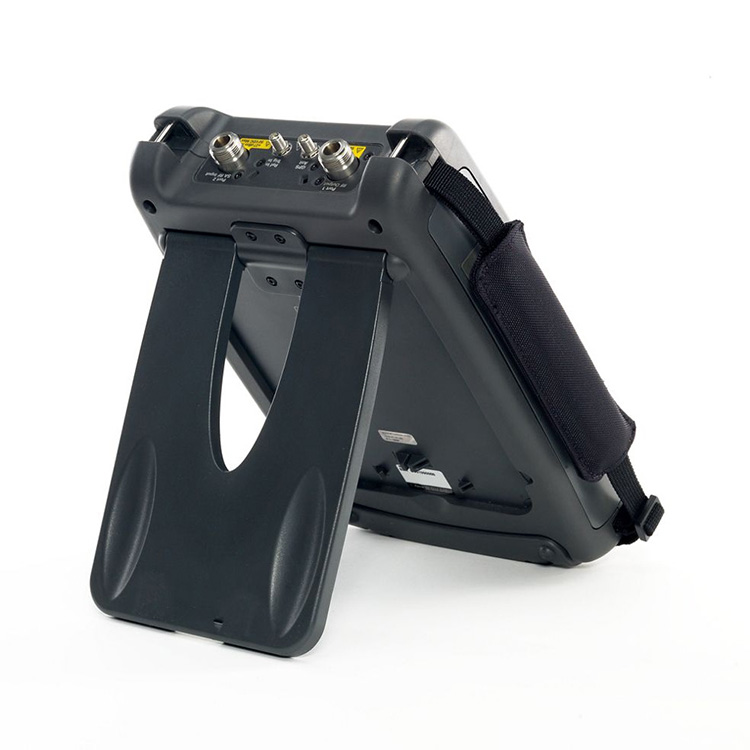

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9916A FieldFox Handheld Microwave Spectrum Analyzer. A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more.
Never Sacrifice Capability or Portability
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9916A FieldFox Handheld Microwave Spectrum Analyzer. Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Standard model includes cable and antenna analyzer
Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
Save time by measuring DTF and TDR in the same sweep
Measure all four S-parameters simultaneously
Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up
Calibrate easily with QuickCal
Use the industry's lightest all-in-one analyzer at only 3.0 kg (6.6 lb)
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder strap
Quick Reference Guide
| Additional CAT/VNA Based Features: |
QuickCal (Subset) DTF/TDR Cable Measurements Mixed-Mode S-Parameters Vector Voltmeter |
| Additional SA Based Features: |
Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA) |
| Applications: |
AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response 89600 VSA Software Over-The-Air LTE FDD and 5GTF |
| Bandwidth: | 10 MHz |
| Bandwidth Options: | 10 MHz |
| Best Speed at 1001 Point, 1 Sweep: | 432 us/pt |
| Cable and Antenna Analyzer: | Yes - Standard |
| DANL @1 GHz: | -155 dBm |
| Form Factor: | n/a |
| Frequency: | 14 GHz |
| Instrument Type: | Combination Analyzer |
| Maximum Analysis Bandwidth: | 10 MHz |
| Maximum Frequency: | 14 GHz |
| Maximum Real-Time Bandwidth: | 10 MHz |
| Minimum Frequency: | 30 kHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 1 dBm |
| Overall Amplitude Accuracy: | ±0.35 dB |
| Phase Noise @1 GHz (1 MHz offset): | -113 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -108 dBc/Hz |
| Power Measurement Using USB Sensor: |
Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Optional |
| Standard Attenuator Range: | 30 dB |
| Standard Attenuator Step: | 5 dB |
| System Dynamic Range: | 100 dB |
| System Features: |
GPS Receiver - Internal Only Remote Control Capability Built-In DC Source |
| TOI @1 GHz (3rd Order Intercept): | +15 dBm |
| Trace Noise: | 0.004 dB rms |
| Type: | Handheld |
| Vector Network Analyzer: | Yes - Optional |
