You can rest assured to buy customized R&S FPC1000 Spectrum Analyzer from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Outstanding quality and innovation does not have to come with a high price tag.
| Models | Frequency range | Phase noise | DANL @ 1 GHz | Instrument type | Starting at |
|
R&S®FPC1000 Order number 1328.6660.02 |
5 kHz - 1/2/3 GHz |
< –92dBc (1Hz) (f=500 MHz, 30kHz offset) |
<–158 dBm/Hz FPC–B22 | Spectrum analyzer | USD 2,1601 |

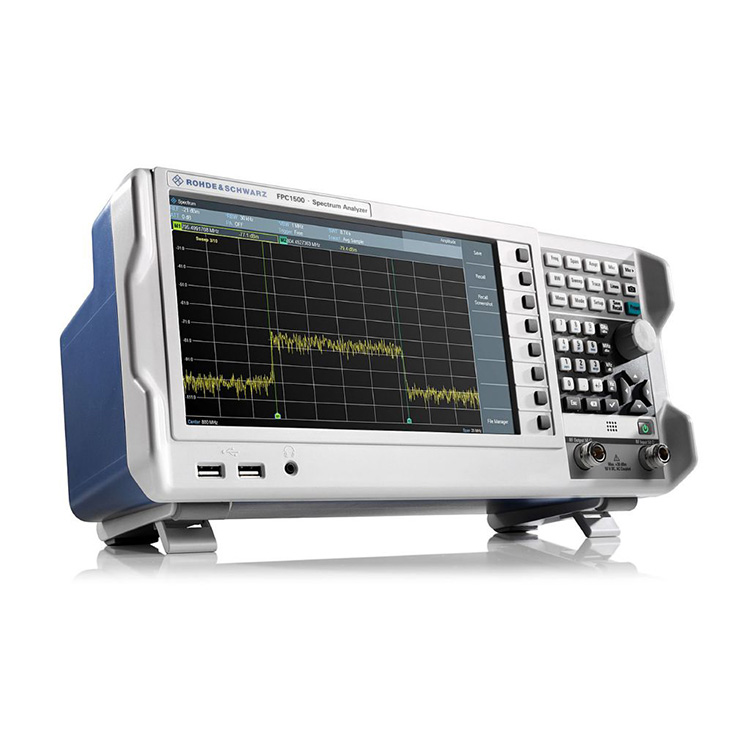

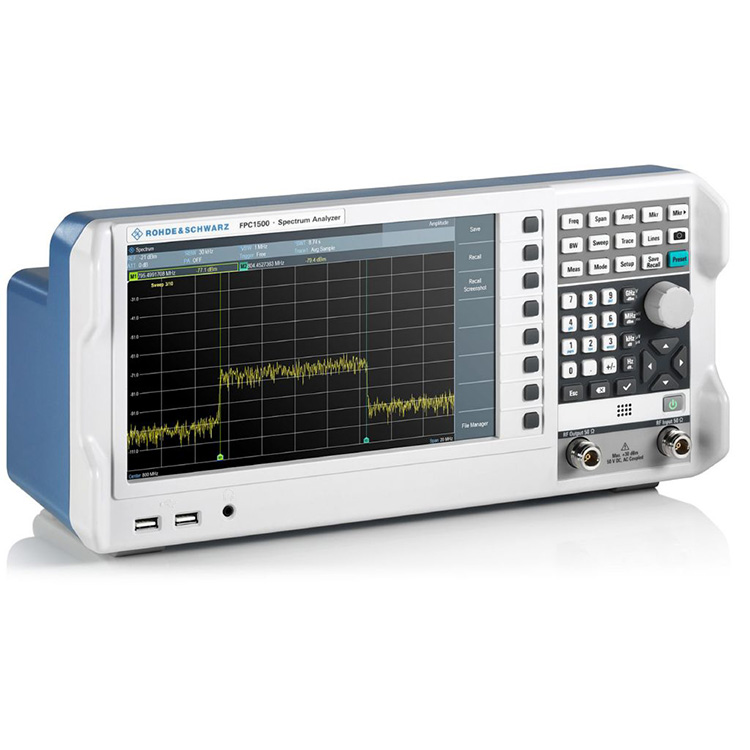

RF performance engineered in Germany
10.1" WXGA (1366 × 768 pixel) display – largest and highest resolution in class
Tracking generator and independent CW signal generator
Built-in VSWR bridge
One port vector network analyzer with Smith chart display
The R&S®FPC is future-proof thanks to the unique Rohde & Schwarz upgrades. The base unit covers a frequency range from 5 kHz to 1 GHz, with keycode-activated upgrades available. The R&S®FPC can be upgraded with a software keycode. All options are installed can be user enabled. The unique Rohde & Schwarz upgrades does away with additional upgrade calibration.
Frequency extension using keycodes
All options can be upgraded by entering a software keycode (R&S®FPC-K42 option for R&S®FPC1500 only).

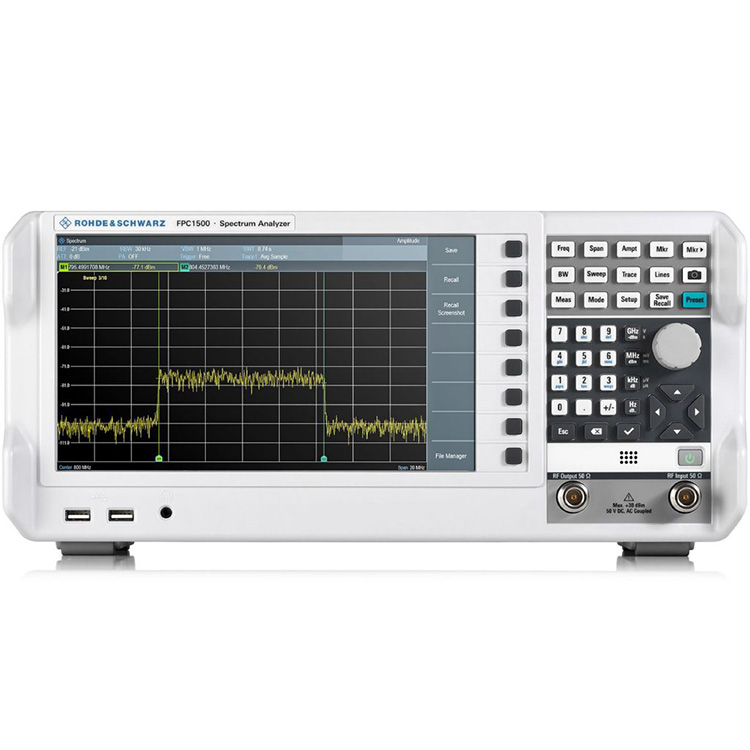

The R&S®FPC has the largest, highest-resolution display of any entry level spectrum analyzer. More horizontal plus more vertical display size and resolution means more signal details in unprecedented clarity. This top class R&S®FPC display visualizes the outstanding signal measurement quality.
High resolution
The high measurement resolution of the R&S®FPC fully utilizes the 10.1" WXGA display
Simple and intuitive controls are changing the industry. The R&S®FPC connects to R&S®InstrumentView as well as to R&S®MobileView remote control platforms via USB, Ethernet or Wi-Fi. R&S®InstrumentView (PC software) and R&S®MobileView (iOS/Android app) are powerful all-in-one remote control applications that come bundled with the R&S®FPC.;
Powerful remote control options
R&S®FPC comes with R&S®InstrumentView for MS Windows as well as R&S®MobileView iOS/Android apps
The unique design with internal VSWR bridge lets the R&S®FPC1500 perform one-port vector reflection measurements. This feature enables impedance measurements of RF antennas or RF circuits using the Smith chart display or distance-to-fault measurements to detect faulty locations in long RF cables.
R&S®FPC-K42: S11 measurement
R&S®FPC1500 can measure vector reflection
RF engineering often requires testing of passive or active RF circuits that do not generate any independent RF signals, such as amplifiers, filters or RF cables. A standalone spectrum analyzer is not enough, a signal generator is needed. The R&S®FPC1500 features a tracking generator function for measuring transmissions in RF filter and general frequency response measurements.
R&S®FPC1500 tracking generator
The R&S®FPC1500 features a tracking generator. A frequency offset can be included for mixer measurement
The R&S®FPC1500 has an integrated signal source with an independent mode. This unique capability enables the R&S®FPC1500 to act as a continuous wave (CW) signal generator. The source can be used as an LO signal for mixer measurements or as an input signal for amplifier gain measurements.
R&S®FPC1500 signal generator
The R&S®FPC1500 is also a handy signal generator that can be used as an input signal.
Basic digital modulation formats are used in many applications, such as near-field communications. The R&S®FPC supports both ASK and FSK analysis. The digital modulation displays include trace, eye diagram, modulation error and symbol analysis. Specialized configuration presets for Bluetooth® Low Energy (Bluetooth® LE) and tire pressure monitoring systems (TPMS) are available, too. Demodulated audio is supported via the built-in speaker or headphone jack.
R&S®FPC-K7: FM trace
The modulation analysis option lets users verify the quality of the basic modulated signals AM/FM and ASK/FSK, with modes for Bluetooth LE and TPMS

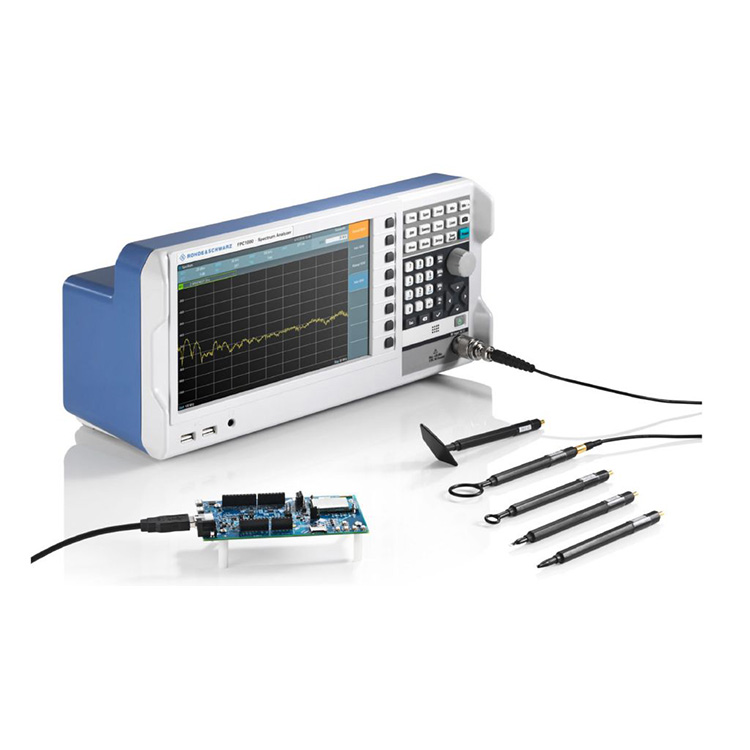

The R&S®FPC comes with the R&S®FPC-K43 receiver mode option for EMI debugging of circuit boards, integrated circuits or cable shielding. The R&S®FPC-B22 preamplifier compensates for coupling loss of probes and increases sensitivity to detect small interfering signals. Cost-effective yet powerful, the R&S®FPC can analyze and locate disturbance sources during development.
R&S®FPC1000 with R&S®HZ-17
Economic EMI debugging with R&S®HZ-17

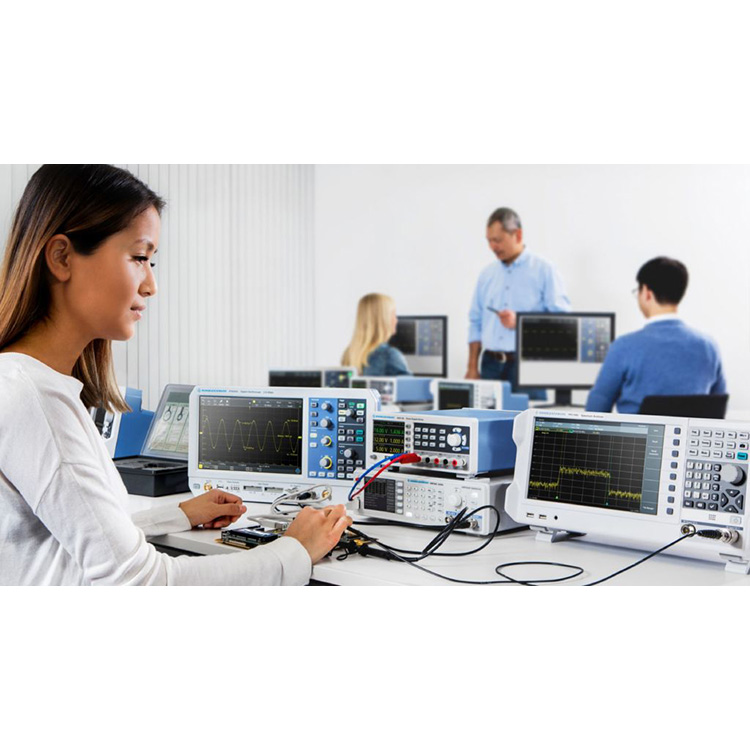

The R&S®FPC spectrum analyzer is ideal for labs where students learn about RF. It combines a user friendly concept with state-of-the-art technology – at an affordable price. The large 10.1" high-resolution screen shows every signal detail and several students can share an analyzer. The free remote control software lets professors remotely assist or monitor students.
The R&S®FPC: ideal for universities
