As the professional manufacturer, we would like to provide you high quality N9935A FieldFox Handheld Microwave Spectrum Analyzer. And we will offer you the best after-sale service and timely delivery. In recent years, our factory has continuously expanded its production force and further tightened its technical strength, and has formed a benign enterprise operation mechanism.
Never Sacrifice Capability or Portability

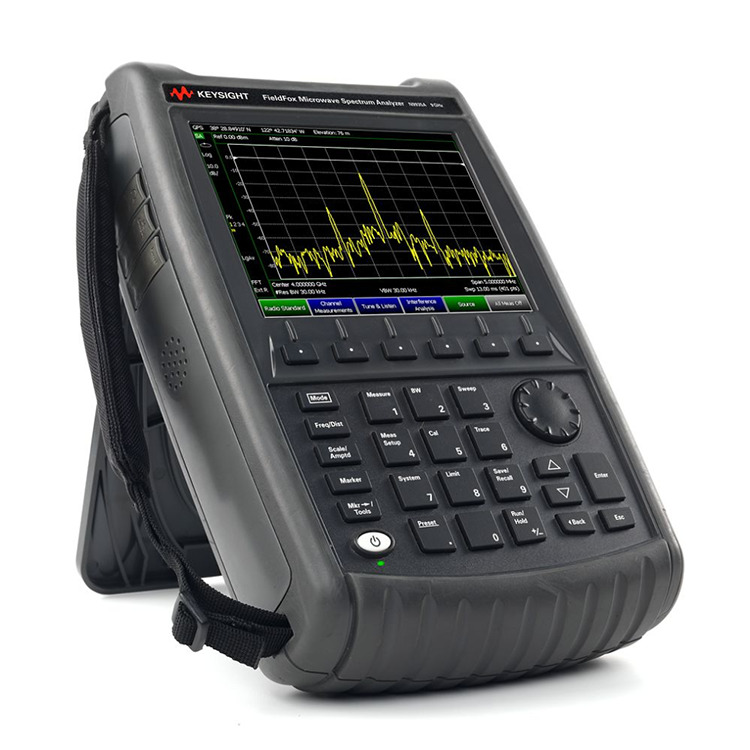

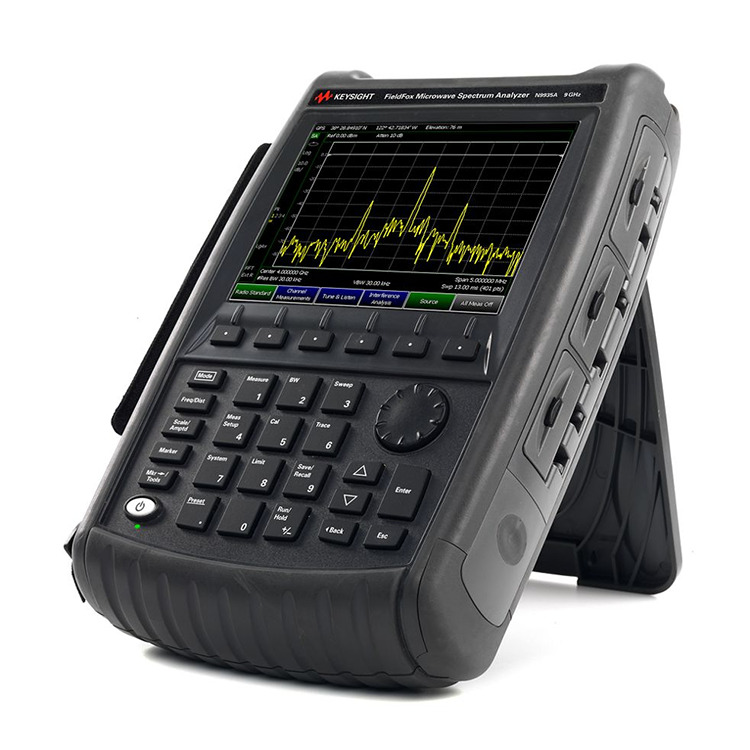

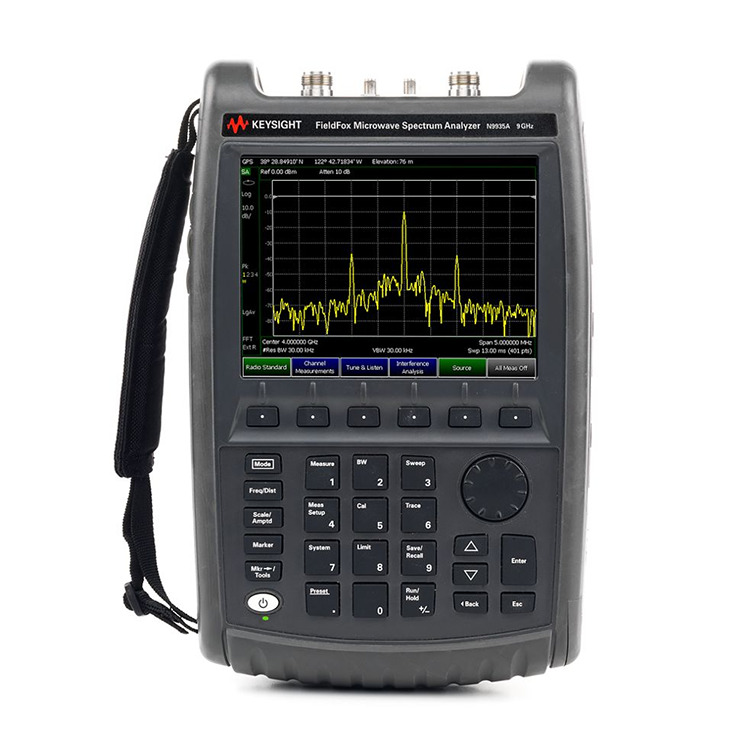

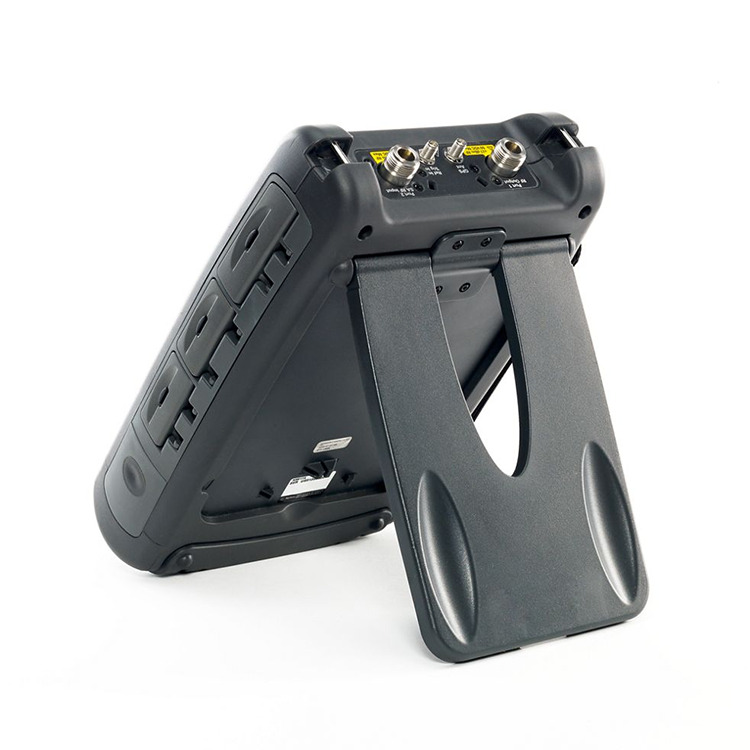

N9935A FieldFox Handheld Microwave Spectrum Analyzer. are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
Characterize radar pulse profiles with a portable solution.
Perform over-the-air measurements for 5G TF and LTE.
Capture I/Q data for RF signal monitoring and analysis.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.0 kg (6.6 lb).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional SA Based Features: | Real-Time Spectrum Analysis |
| Noise Figure Measurements | Over-The-Air Measurements |
| Built-In Power Meter | Extended Range Transmission Analysis (ERTA) |
| Applications: | AM/FM Tune and Listen |
| Field Strength Measurement | SCPI Code Compatibility |
| Spectrogram | Stimulus Response |
| 89600 VSA Software | Over-The-Air LTE FDD and 5GTF |
| Bandwidth Options: | 10 MHz |
| Cable and Antenna Analyzer: | No |
| DANL @1 GHz: | -155 dBm |
| Frequency: | 9 GHz |
| Instrument Type: | Spectrum Analyzer |
| Maximum Analysis Bandwidth: | 10 MHz |
| Maximum Frequency: | 9 GHz |
| Maximum Real-Time Bandwidth: | 10 MHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 1 dBm |
| Overall Amplitude Accuracy: | ±0.35 dB |
| Phase Noise @1 GHz (1 MHz offset): | -113 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -108 dBc/Hz |
| Power Measurement Using USB Sensor: | Frequency-Offset |
| CW or Swept-Frequency | RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Standard |
| Spur Free Dynamic Range: | > 105 dB |
| Standard Attenuator Range: | 30 dB |
| Standard Attenuator Step: | 5 dB |
| System Features: | GPS Receiver - Internal Only |
| Remote Control Capability | Built-In DC Source |
| Type: | Handheld |
| TOI @1 GHz (3rd Order Intercept): | +15 dBm |
| Vector Network Analyzer: | No |
