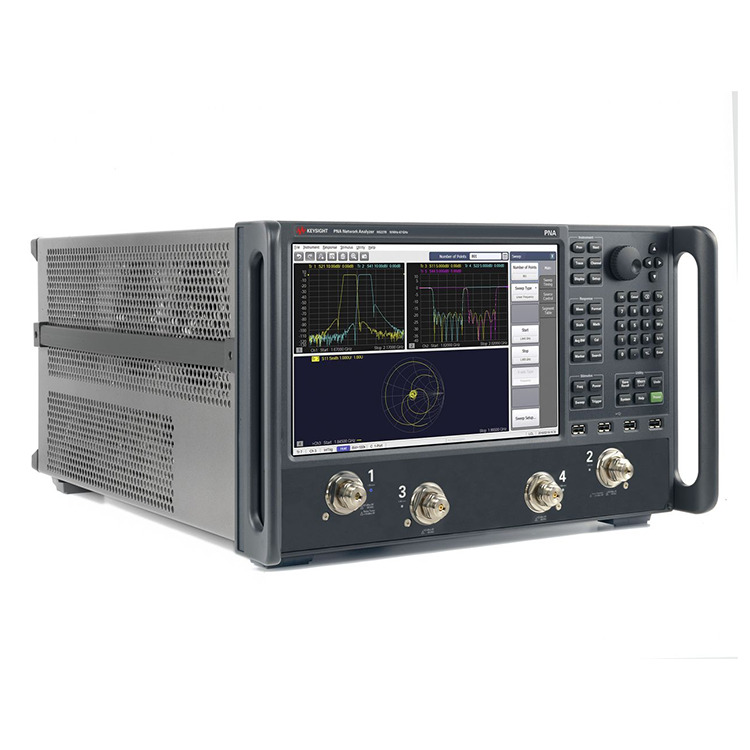

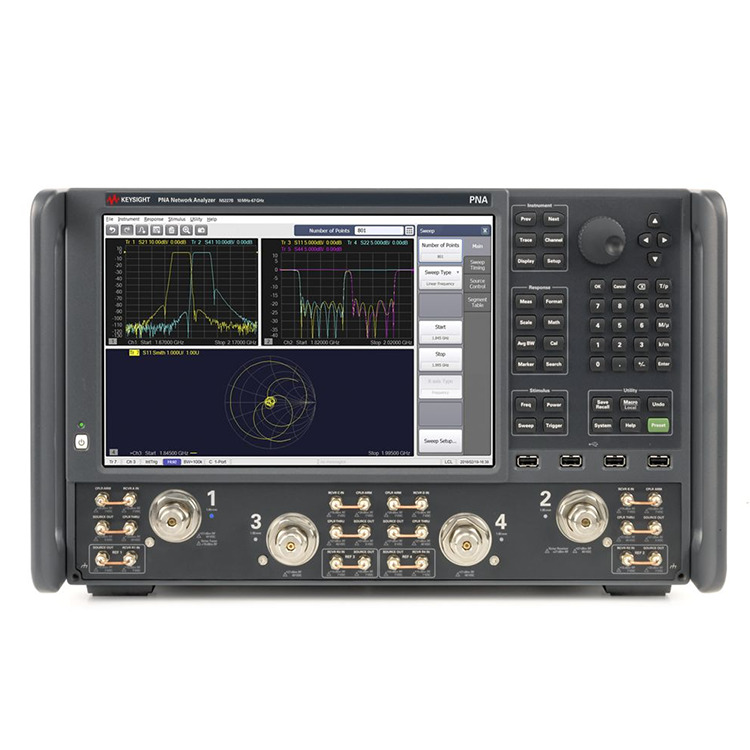

Buy N5222B PNA Network Analyzers which is of high quality directly with low price. 10 MHz to 26.5 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
New DDS Synthesizers Improve PNA Measurement Performance
Meet your toughest measurement challenges with the highest-performing microwave network analyzer in the industry.
Measure S-parameters with the smallest uncertainty and highest stability.
Efficiently characterize active components with applications that simplify setups.
Meet your budget and measurement needs by customizing to just the right level of performance.

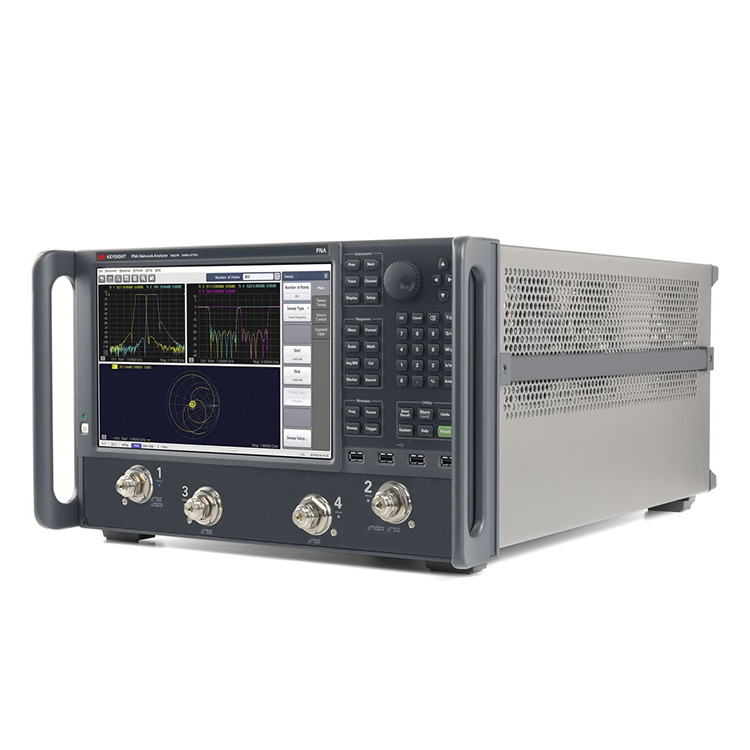

Accelerate insight into component behavior using a multitouch display and intuitive user interface.

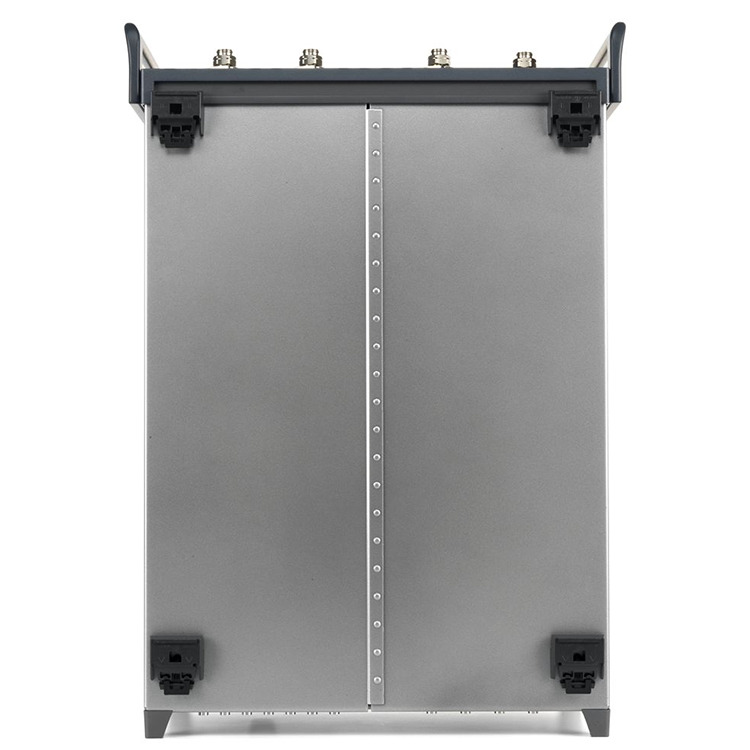

plug, hole, bottom foot
installation and quick-start guide
3 inductors (ferrite cores)
|Frequency Range||900 Hz to 67 GHz|
|Trace Noise||0.003 dB RMS|
|Built-In Ports||2 or 4|
|Best 201 Point Sweep Time||5.5 to 6.3 ms|
|Maximum Frequency:||26.5 GHz|
|Dynamic Range:||134 dB @20 GHz|
|Output Power:||13 dBm|
