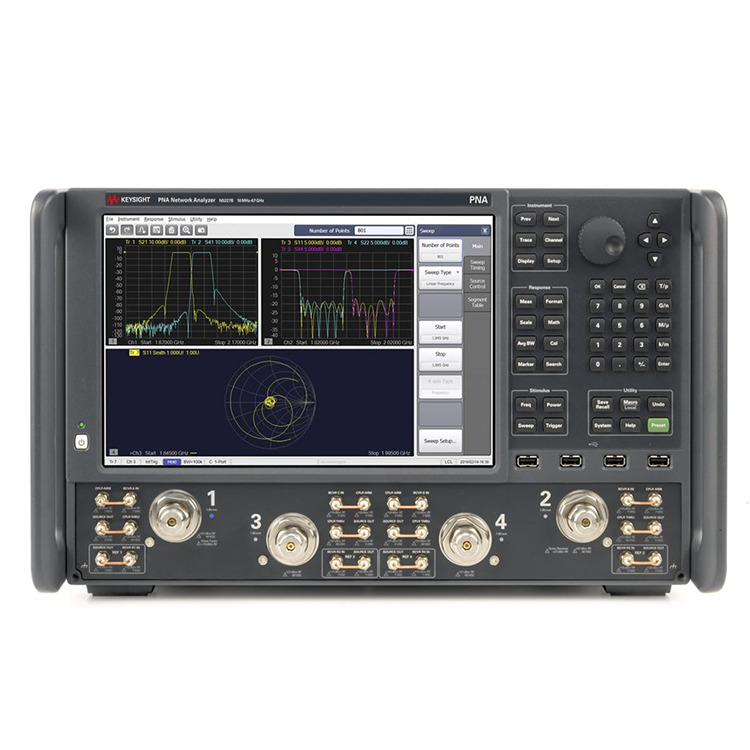

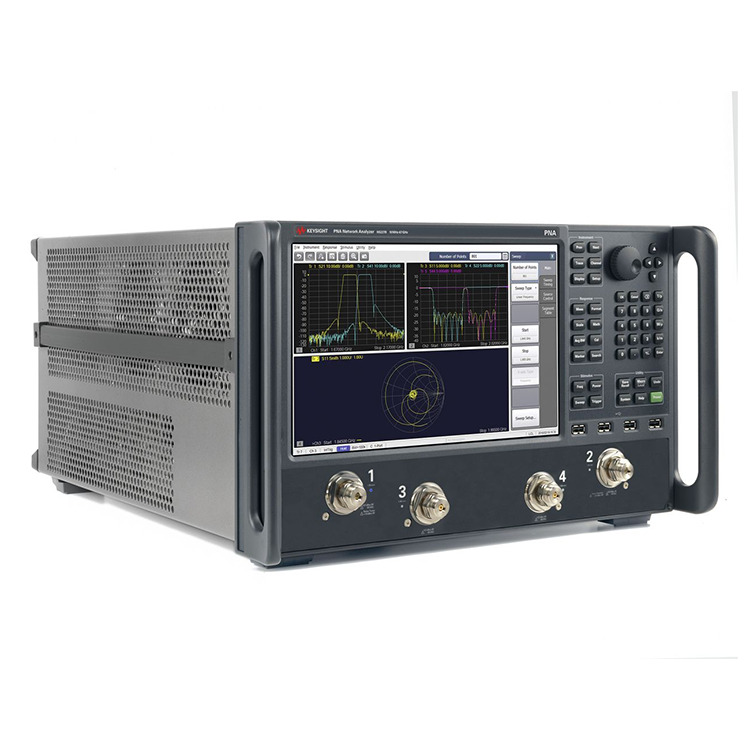

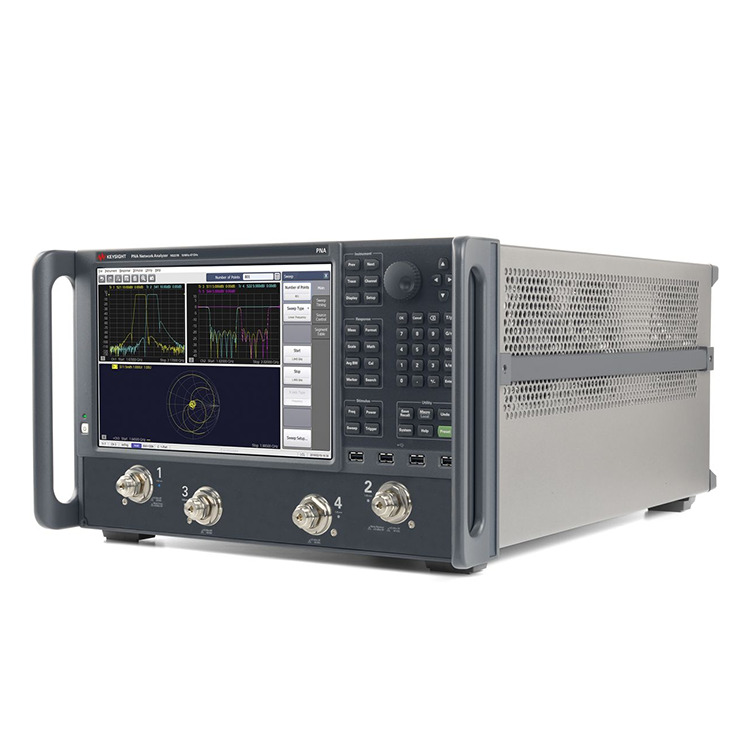

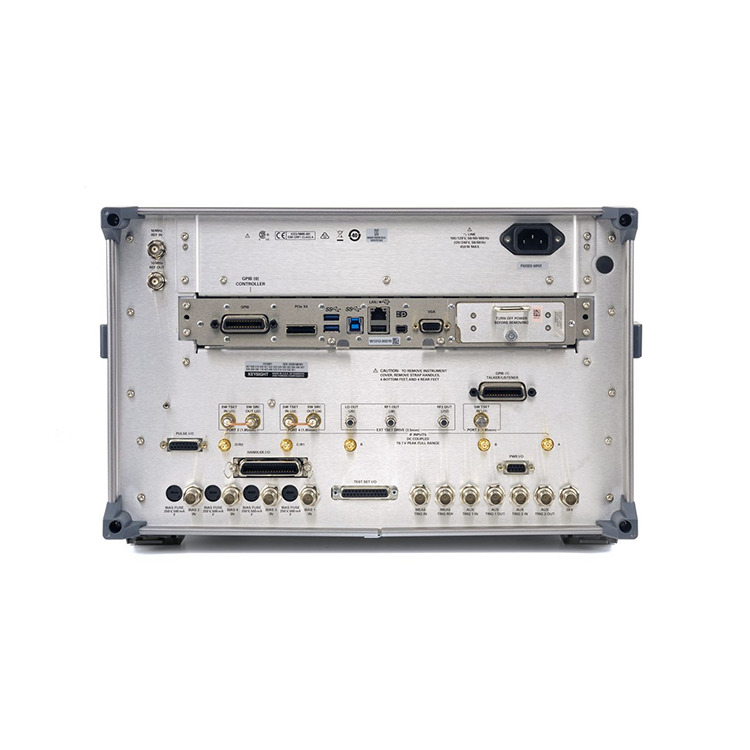

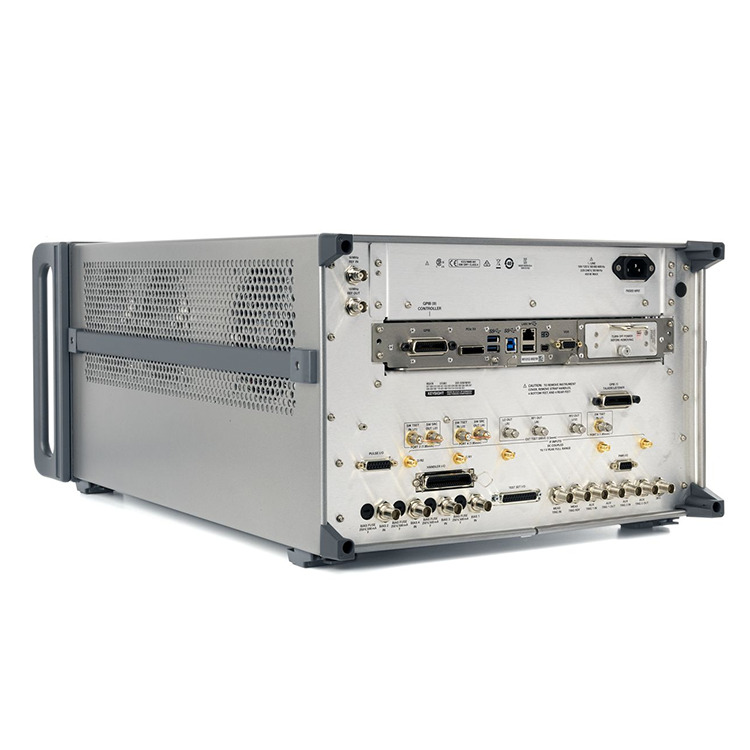

The following is the introduction of high quality N5225BT PNA Network Analyzers, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future! The N5225BT provides the N5225B 50 GHz PNA, application software including PLTS and Enhanced TDR and accessories for signal integrity evaluation of cables, backplanes, and BGA packages.
Use this bundle solution to evaluate the signal integrity of cables, backplanes, PC boards, connectors, BGA packages with physical layer test systems (PLTS), and enhanced time-domain analysis applications.
What's included:
N5225B 50 GHz PNA
S93007B, S93011B, and N19301B / 3B / 5B / 7B applications
N4693D ECal module
four N9910X-714 2.4 mm test cables
| Frequency Range | 900 Hz to 67 GHz |
| Trace Noise | 0.003 dB RMS |
| Built-In Ports | 2 or 4 |
| Best 201 Point Sweep Time | 5.5 to 6.3 ms |
| Maximum Frequency: | 50 GHz |
| Dynamic Range: | 123 dB @45 GHz |
| Output Power: | 13 dBm |
