You can rest assured to buy R&S ZNL4 Vector Network Analyzers from our factory. Cost-efficient, portable (battery-powered option), precise, versatile.
| Models | Ports | Frequency | Connectors |
|
R&S®ZNL4 Order number 1323.0012.04 |
2 | 4.5 GHz | N (f) |
Wide frequency range from 5 kHz up to 20 GHz
Optional spectrum analysis and power sensor support up to 26.5 GHz
CW signal generator spectrum analysis option
Cost-efficient, portable (battery-powered option), precise, versatile

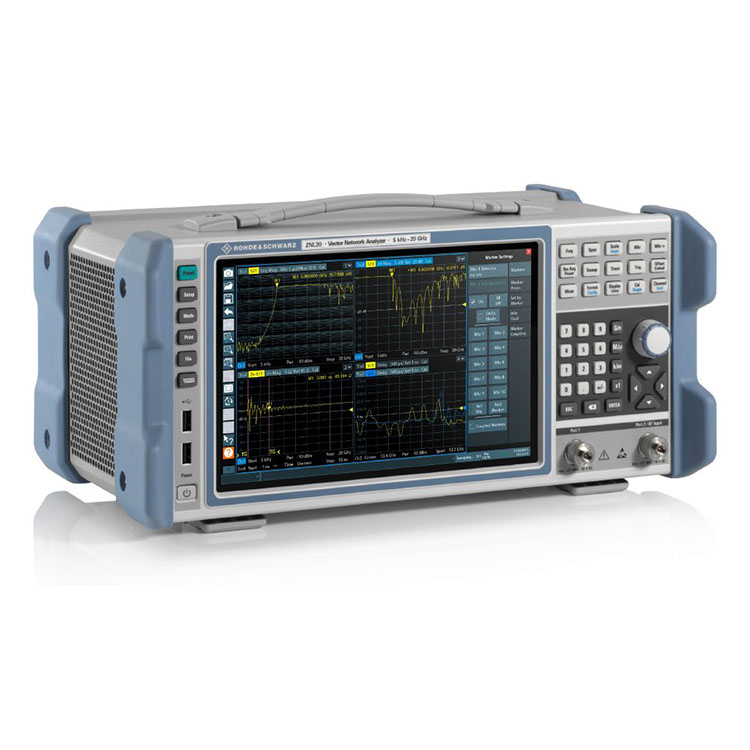

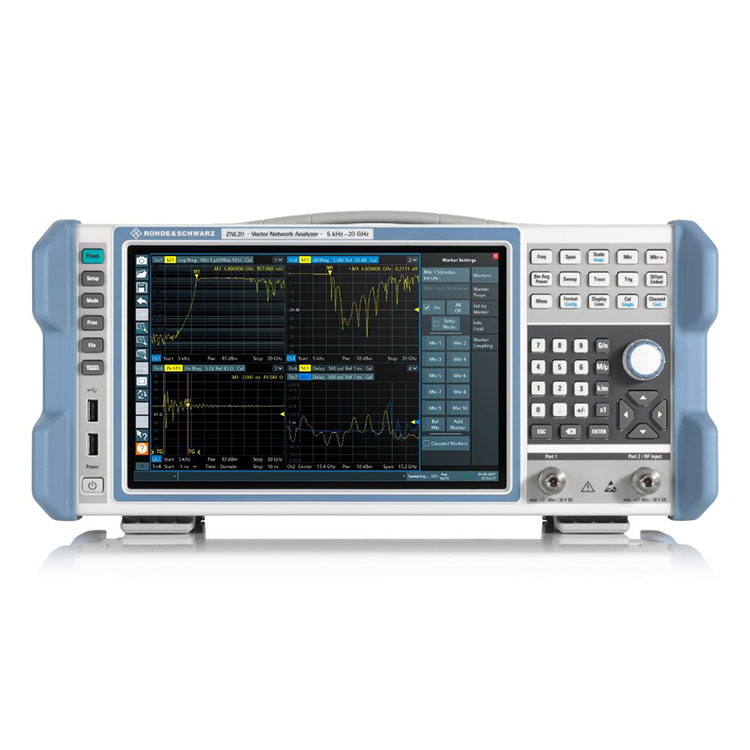

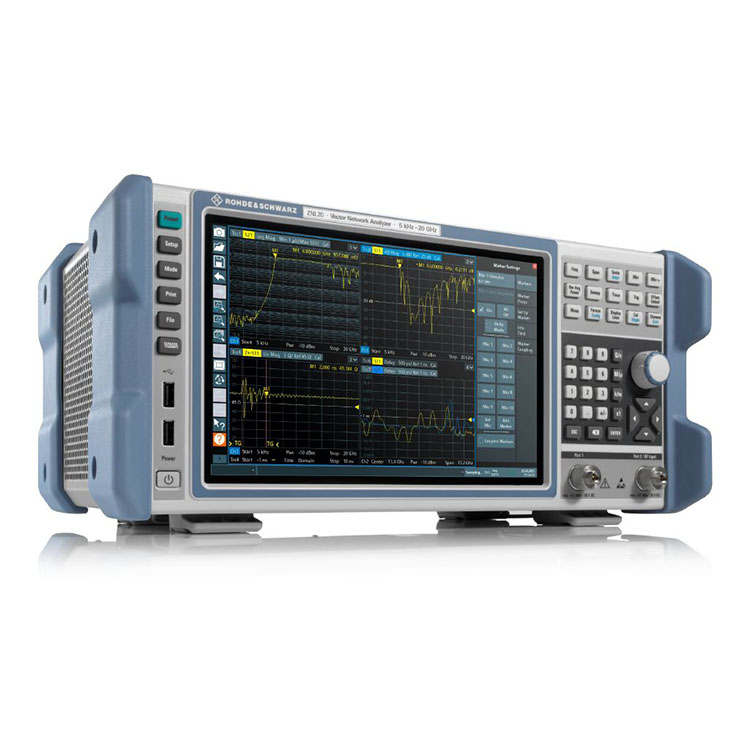

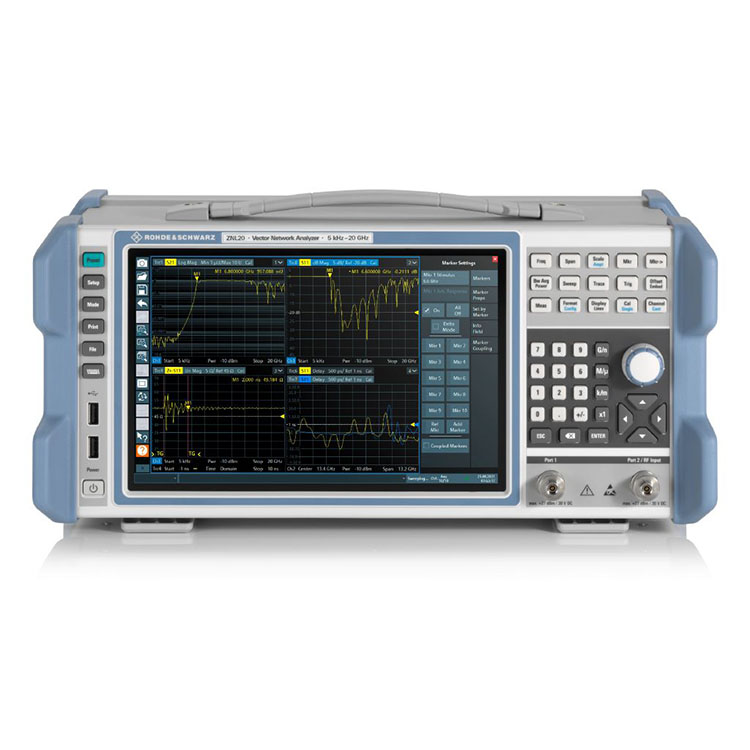

Benchtop VNA with a small form factor
With a depth of less than 24 cm and weighing only 6 kg to 8 kg, the R&S®ZNL is the most compact instrument in its class. The small footprint leaves plenty of space on the workbench – more than with any other comparable benchtop analyzer.
You can rest assured to buy R&S ZNL4 Vector Network Analyzers from our factory. With a carrying handle and an optional battery pack, the R&S®ZNL is a fully portable instrument ideal for field use
Many instruments, one box
The spectrum analyzer option available on all the models saves even more space, since the R&S®ZNL offers the functions of different instruments in the same compact size. The R&S®FPL1-K9 option adds support for R&S®NRP power sensors, and the R&S®ZNL-K14 option adds an independent CW signal generator, turning the R&S®ZNL into a multi-functional analysis device.
All R&S®ZNL models can be equipped with a spectrum analyzer up to 26.5 GHz, adding the R&S®FPL scope of functions. The R&S®ZNL-K14 option adds an independent CW signal generator to measure harmonics and spurious frequency components
Battery and DC power supply for field use
The optional battery pack makes the R&S®ZNL a fully portable instrument ideal for field use. The optional 12 V/24 V DC power supply can be used to operate the R&S®ZNL in vehicles. The optional R&S®FPL1-Z2 transport bag protects the instrument against damage and dirt during transport and field deployment. Side vents and a transparent top cover allow portable operation while the instrument remains safely in the bag. A carrying vest holster is also available.
The R&S®ZNL is an ideal economic high-performance VNA with a broad range of measurement functions
