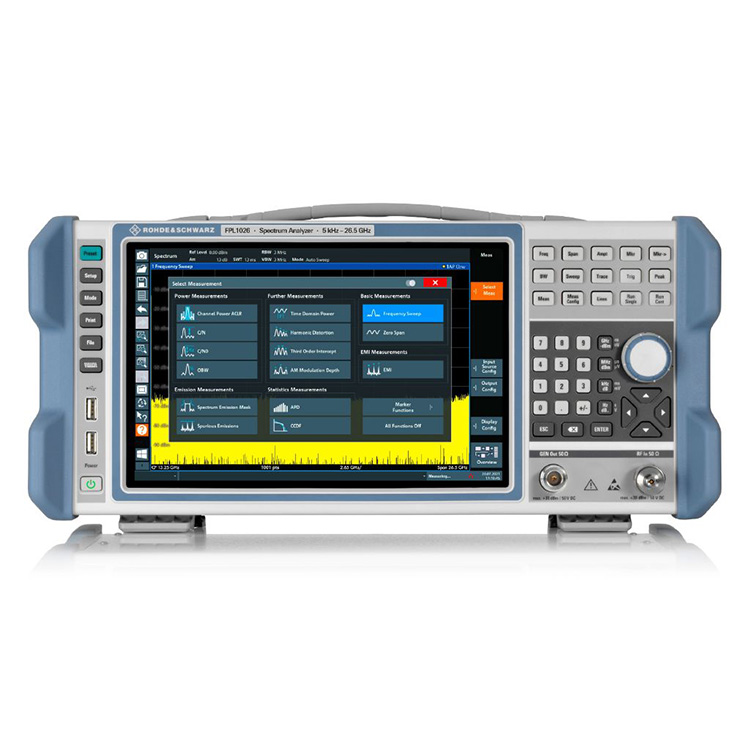

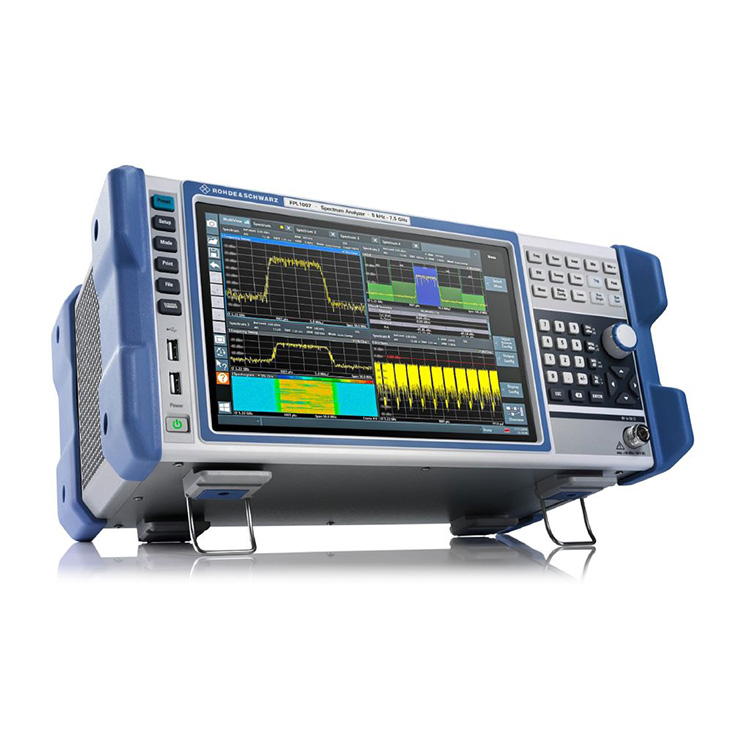

As the professional manufacturer, we would like to provide you R&S FPL1026 Spectrum Analyzer. In an RF lab, the R&S®FPL1000 family is as indispensable as an oscilloscope or multimeter. It is a single instrument for many measurement tasks.
| Models | Frequency range | Phase noise | DANL @ 1 GHz | Max. analysis bandwidth | Instrument type |
|
R&S®FPL1026 Order number 1304.0004.26 |
5 kHz - 26.5 GH |
< -108 dBc (1 Hz) (f=1 Ghz, 10 kHz offset) |
< -160 dBm/Hz Pre-amp on | 40 MHz (FPL1-B40, and FPL1-B11) | Signal and spectrum analyzer |
Frequency range 5 kHz to 26.5 GHz
SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz
DANL with preamplifier: typ. –163 dBm from 10 MHz to 2 GHz
Lightweight with small footprint
40 MHz analysis bandwidth (option)
A single instrument for many types of measurements

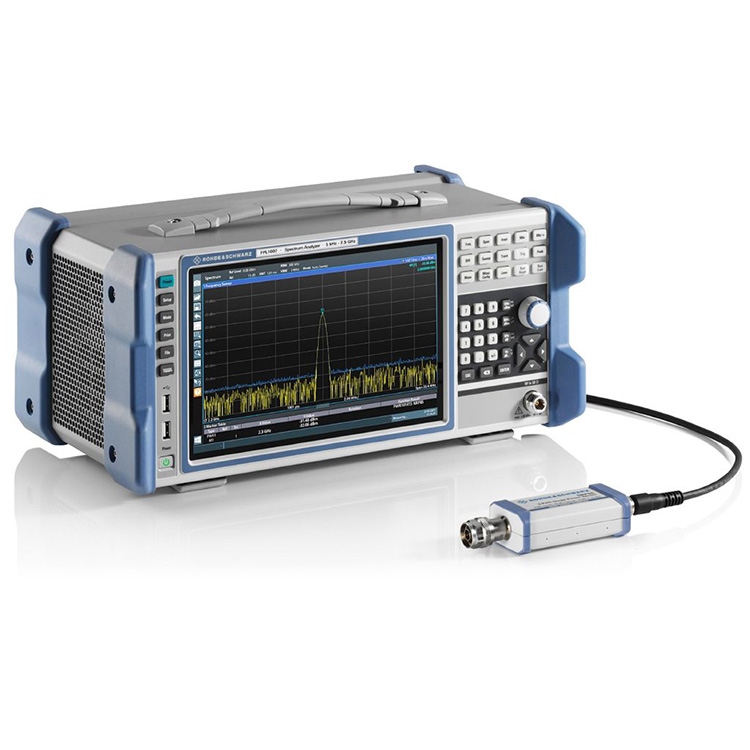

You can use the R&S®FPL1000 for spectral measurements, highly accurate power measurements with power sensors and when analyzing analog and digitally modulated signals.

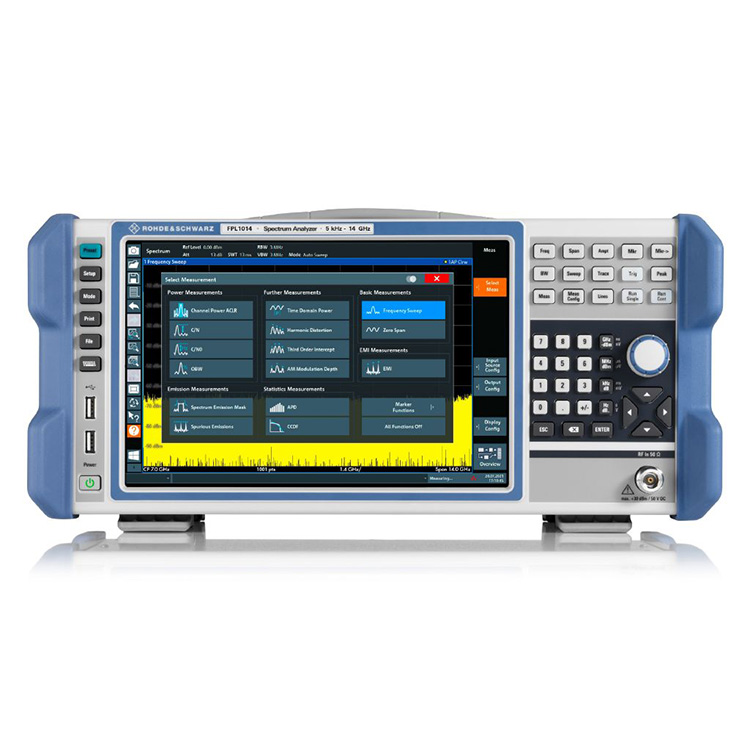

Measurement modes
The standard R&S®FPL1000 base unit supports various advanced spectrum measurement modes
Low phase noise and low displayed average noise level
Featuring a phase noise of typ. –108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier), a third-order intercept point of typ. +20 dBm, 1 Hz to 10 MHz resolution bandwidth and typ. –163 dBm displayed average noise level, the R&S®FPL1000 is comparable to higher class analyzers. It is ideal for the lab, production and service tasks.
Phase noise measurement
Simple phase noise measurement with a marker function
Operation as intuitive as a smartphone
The touchscreen can be used for configuration and performing measurements. A one-finger swipe across the screen adjusts the center frequency or the reference level. A two-finger swipe adjusts the displayed span or level range.

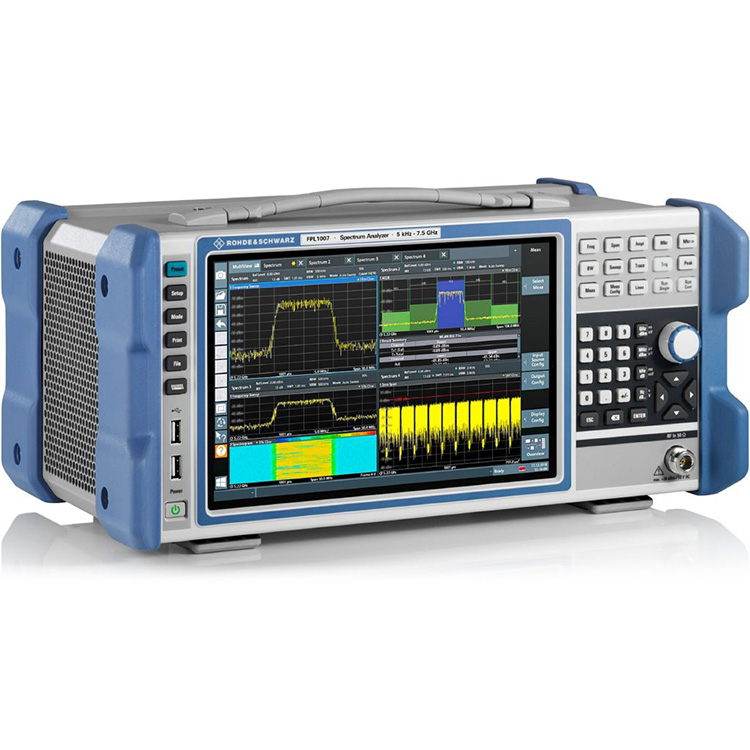

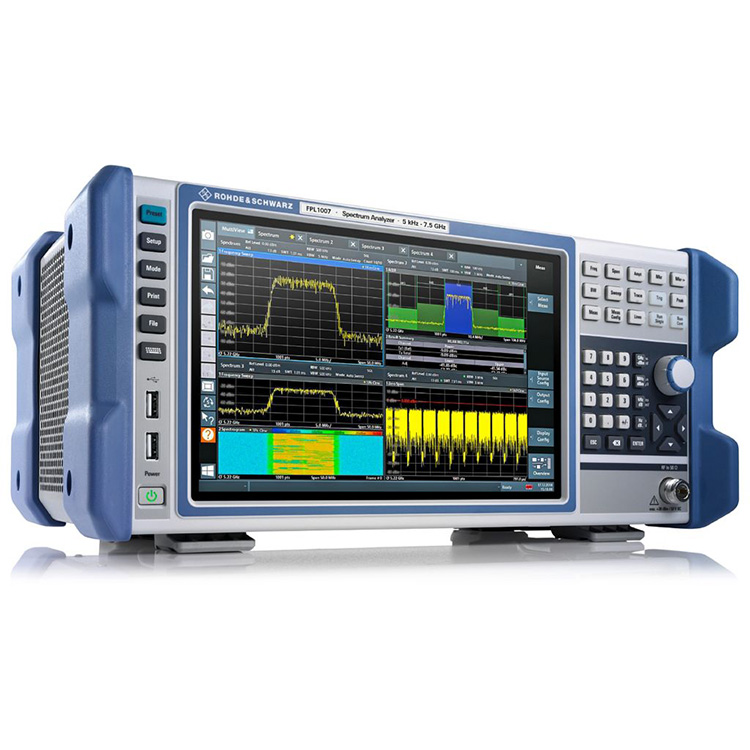

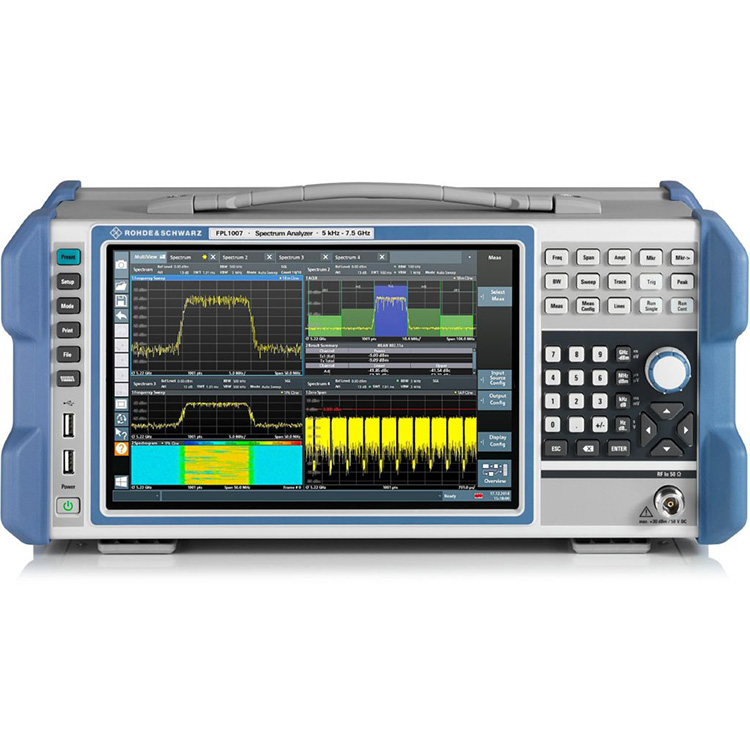

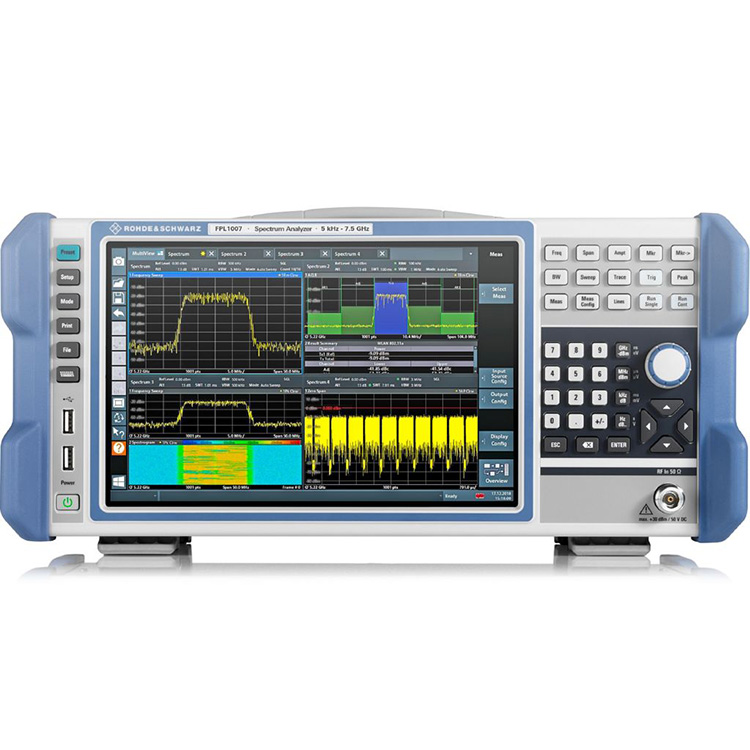

Multiview of the R&S®FPL1000
The sequencer can perform spectrum measurements, adjacent channel power measurements, time domain measurements and spectrogram measurements
It can be used almost everywhere…
The low weight of 6 kg, optional battery pack for three hours of operation and carrying bag and shoulder harness mean you can use the R&S®FPL1000 signal and spectrum analyzer wherever you need it.
Carrying bag for the R&S®FPL1000
Optional R&S®FPL1000 carrying bag. The R&S®FPL1-B31 battery option allows operation while inside the bag.
