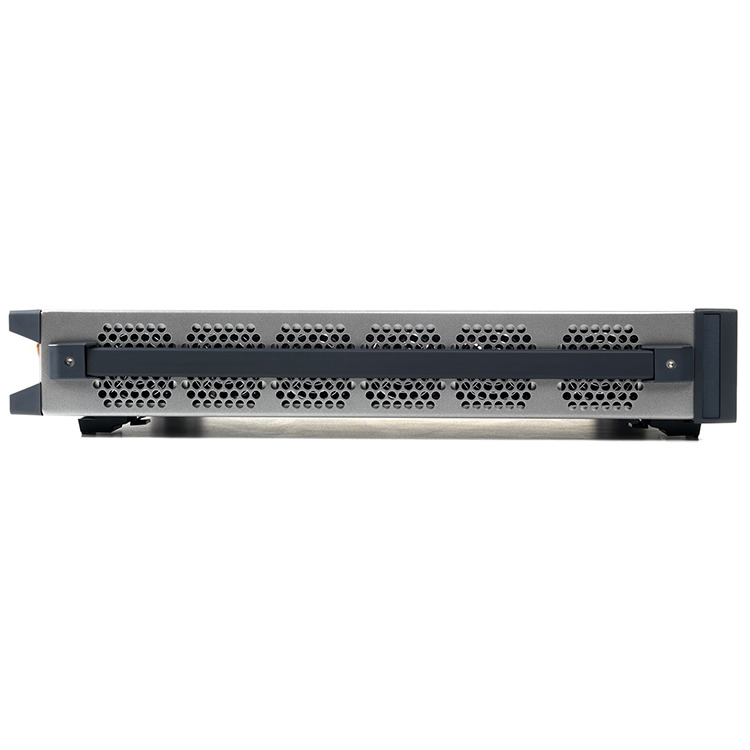

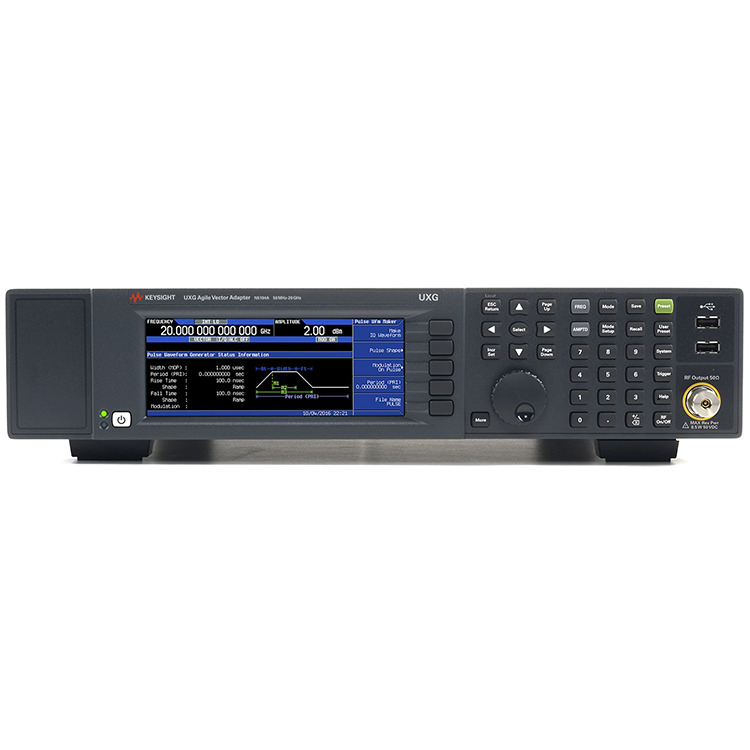

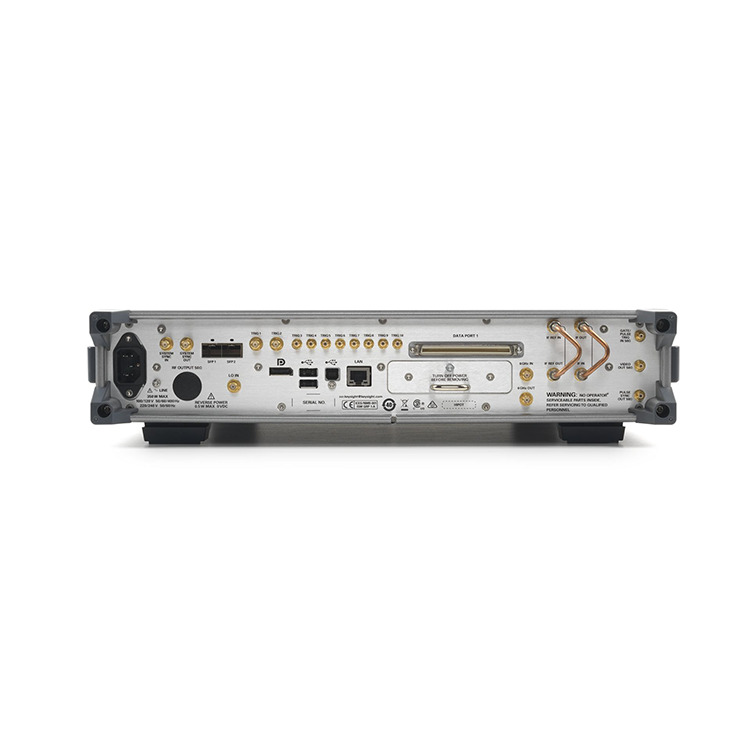

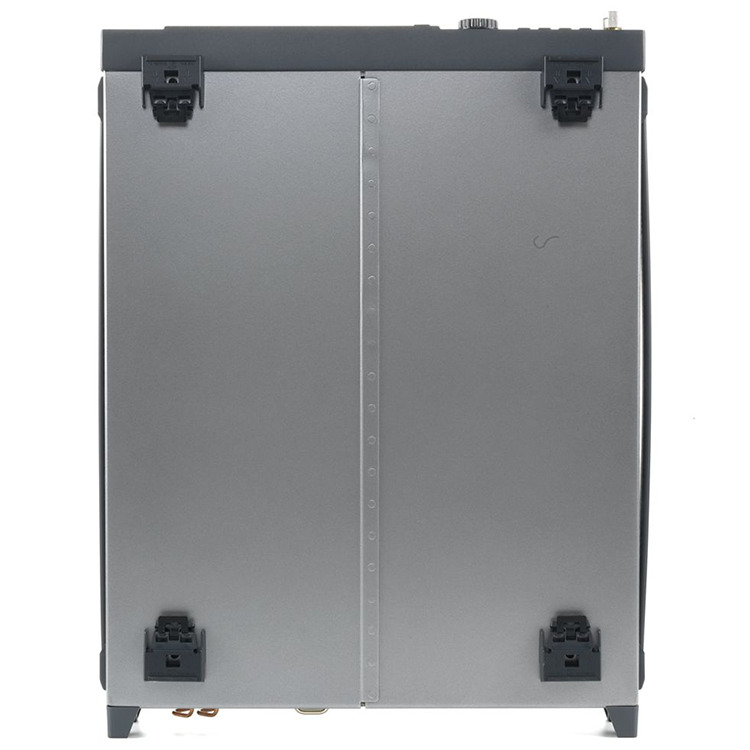

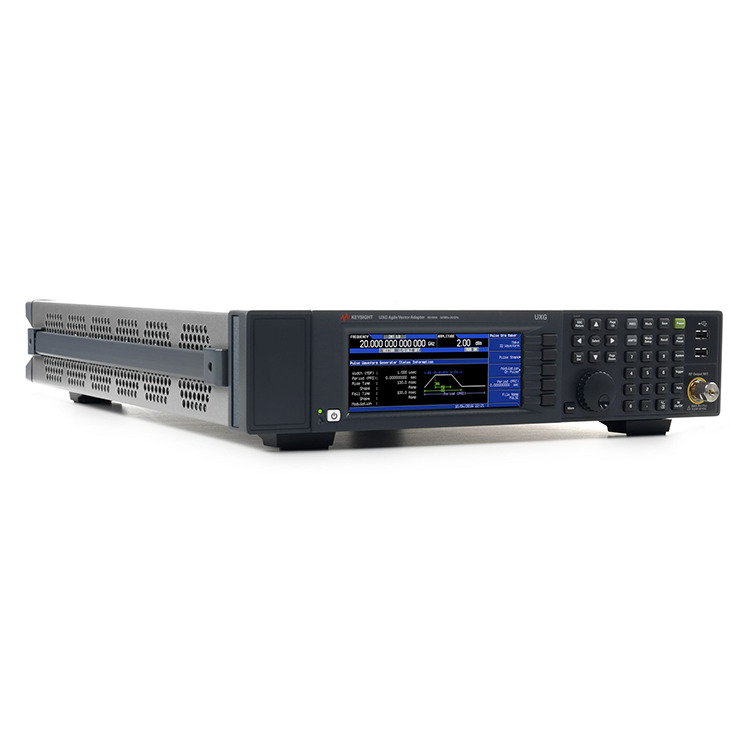

The following is the introduction of high quality N5194A X-Series Agile Signal Generators, hoping to help you better understand it. The N5194A is part of the UXG family of signal generation products designed for threat simulation; simulate complex signal environments for radar/EW.
The following is the introduction of high quality N5194A X-Series Agile Signal Generators, hoping to help you better understand it. Take your lab to the next level: simulate increasingly complex signal environments for radar and EW with enhanced realism and greater confidence
Rapidly adaptable to provide the multiple channel and port configurations you need
Ensure coherency across multiple sources with calibration of amplitude, phase, and time
What's included:
20 GHz option with 3.5 mm(f) to 3.5 mm(f) adapter
40 GHz option with 2.4 mm(f) to 2.4 mm(f) and 2.4 mm(f) to 2.9 mm(f) adapters
120 dB agile amplitude range
Baseband generator with 250 MSa/rate (200 MHz BW) and 512 MSa memory
< 500 ns typical update rate
Country-specific power cord
One day of on-site startup assistance
| Frequency | 10 MHz – 44 GHz |
| Phase Noise @ 1 GHz (20 kHz offset) | -143 dBc/Hz |
| Frequency Switching | <= 170 ns |
| IQ Modulation BW (Internal/External) | Up to 1.6 GHz |
| Modulation Types Available | AM, FM, PM, Pulse, Arbitrary |
