As a professional high quality E4980A LCR Meters manufacturer, you can rest assured to buy it from our factory. 20 Hz to 2 MHz, with 4-digit resolution in any range; see the E4980AL Precision LCR Meter for lower price with 300 k / 500 k / 1 MHz frequencies.
Frequency
As a professional high quality E4980A LCR Meters manufacturer, you can rest assured to buy it from our factory. 20 Hz to 2 MHz, with 4-digit resolution in any range; see the E4980AL Precision LCR Meter for lower price with 300 k / 500 k / 1 MHz frequencies
Basic accuracy
0.05% basic accuracy with superior measurement repeatability at low and high impedance
DC bias
DC Bias Enhancement (Option 001)
Rdc measurements (Option 200)
More features
20 Vrms test signal (Option 001)
High-speed measurements: 5.6 ms
201 points list sweep

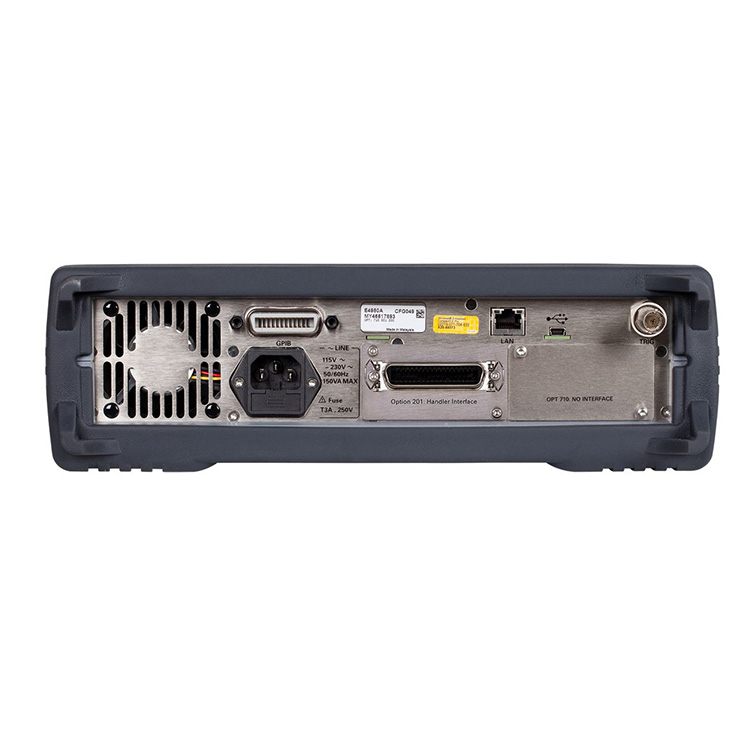

Versatile PC connectivity (LAN, USB and GPIB)

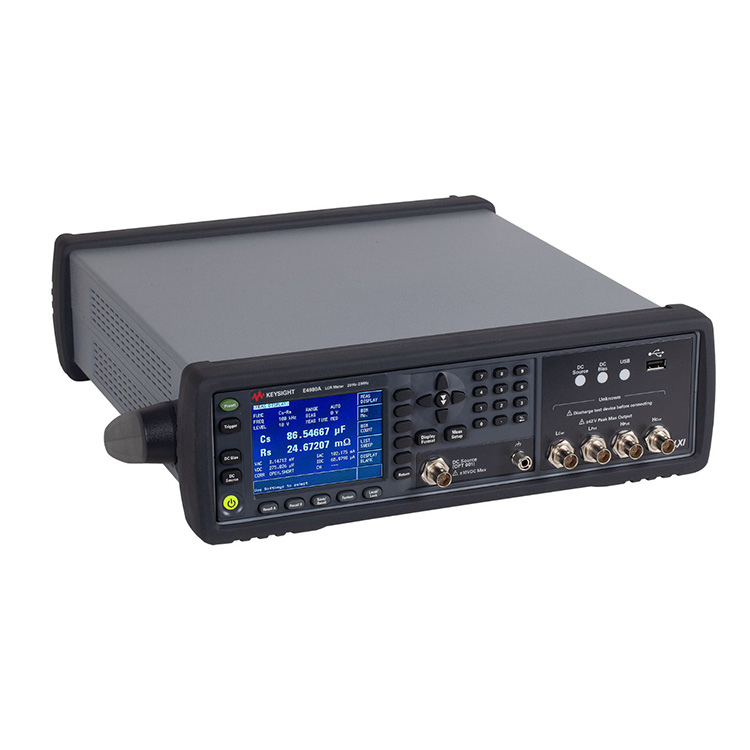

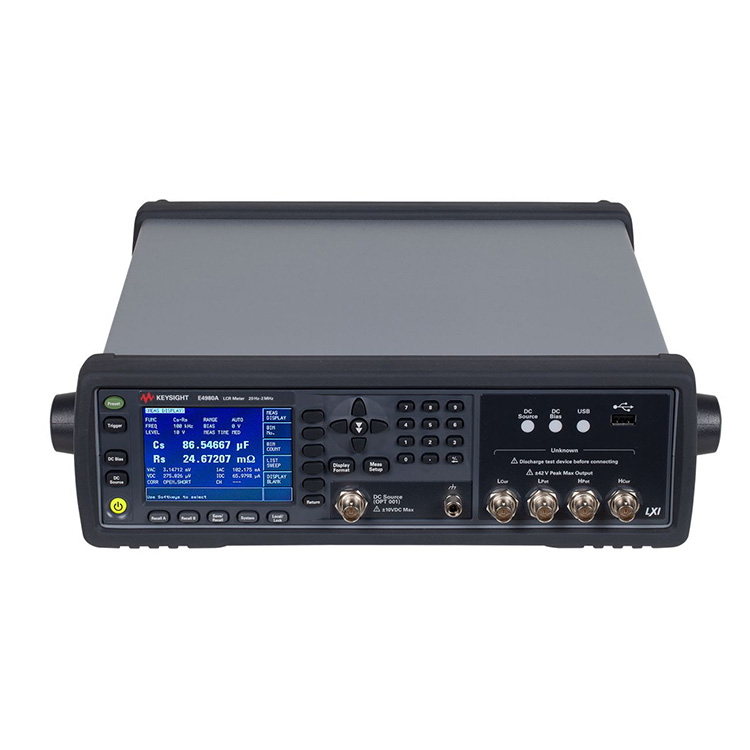

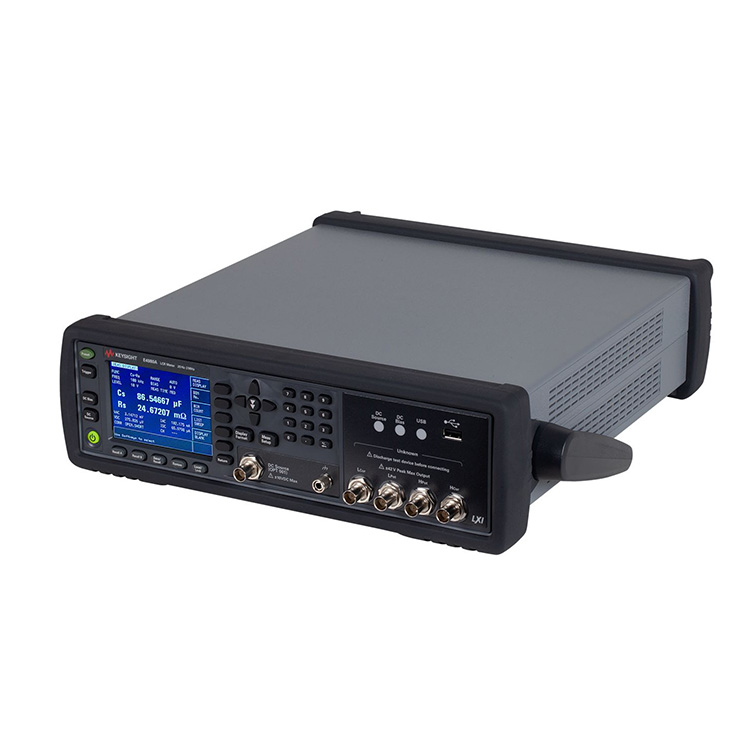

The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity. For materials measurements, the E4980A with the N1500A-005/006 materials measurement suite simplifes the measurement process from fixture setup to report generation.
| Basic Accuracy: | 0.05% |
| DC Bias: | Yes (±1.5Vdc, ±2 Vdc), Option 001 (-40 Vdc to +40 Vdc) |
| Frequency: | 20 Hz to 2 MHz |
| Maximum Frequency: | 2 MHz |
| Measurement: | Four Terminal Pair (4TP) |
| Measurement Functions: | n/a |
| Primary Applications: |
LCR components Materials measurement Semiconductors |
| Speed: | 5.6 msec |
| Target DUT: |
General Purpose device Material |
| Type: | Benchtop |
