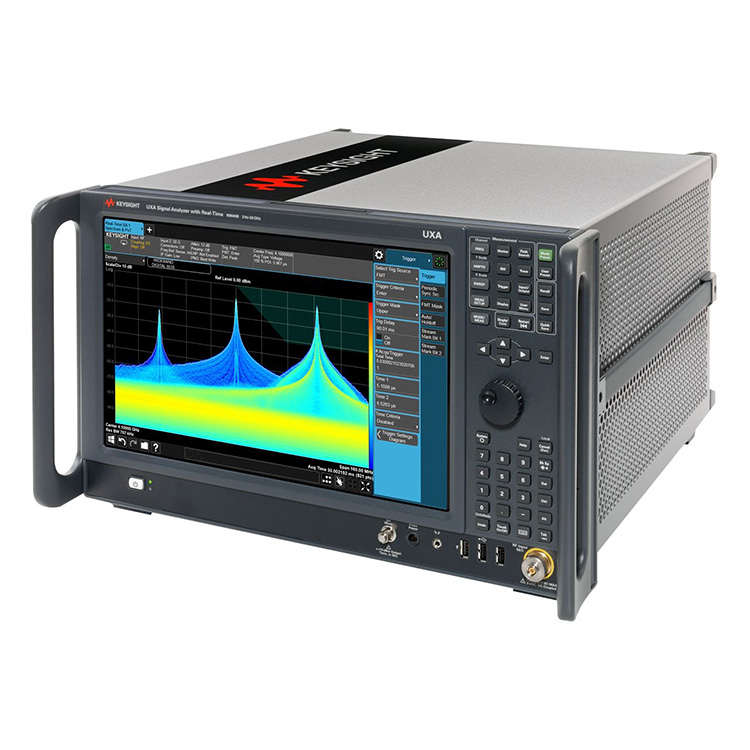

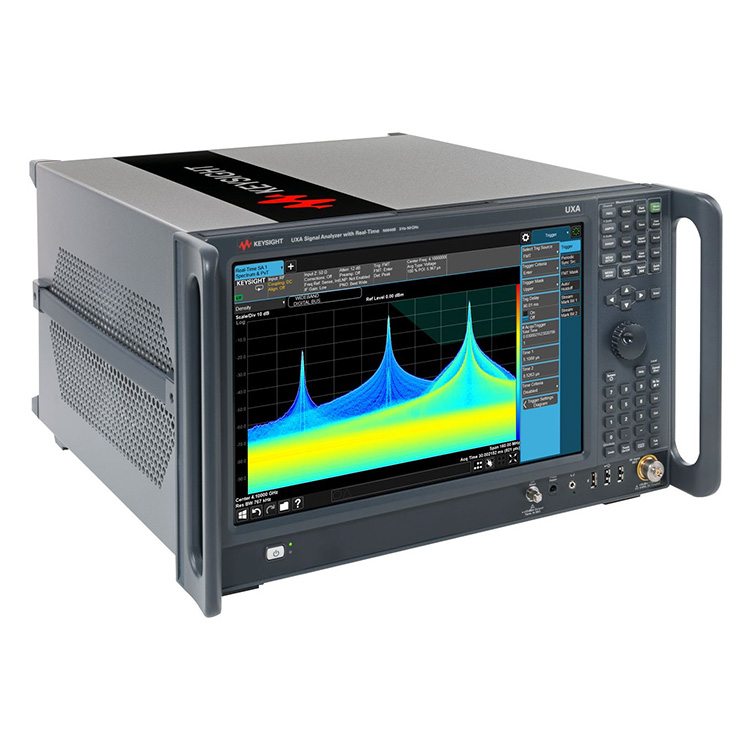

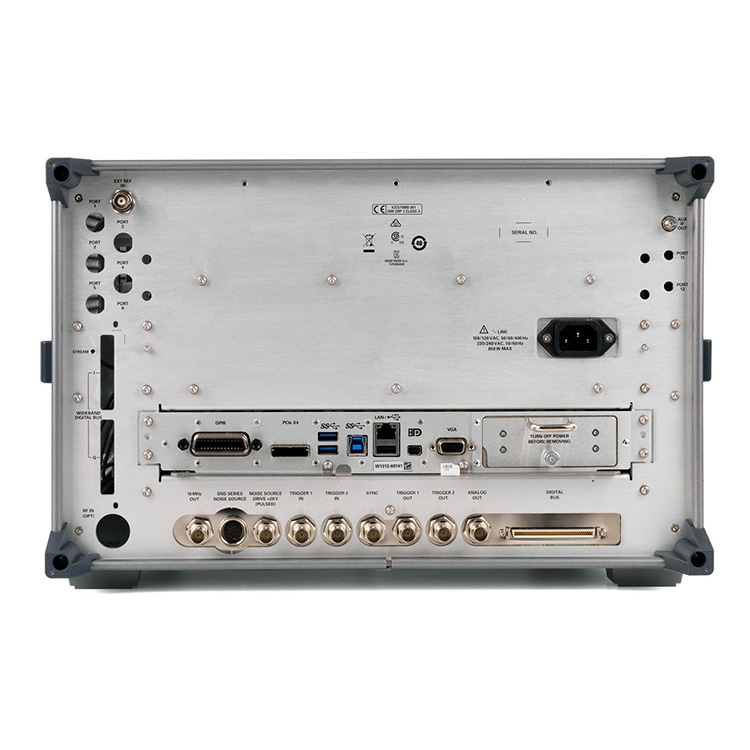

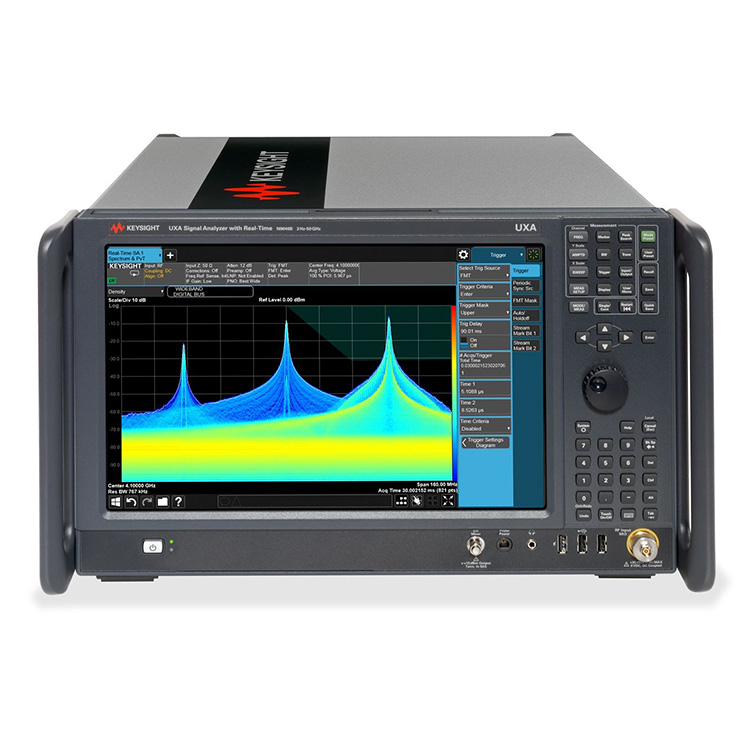

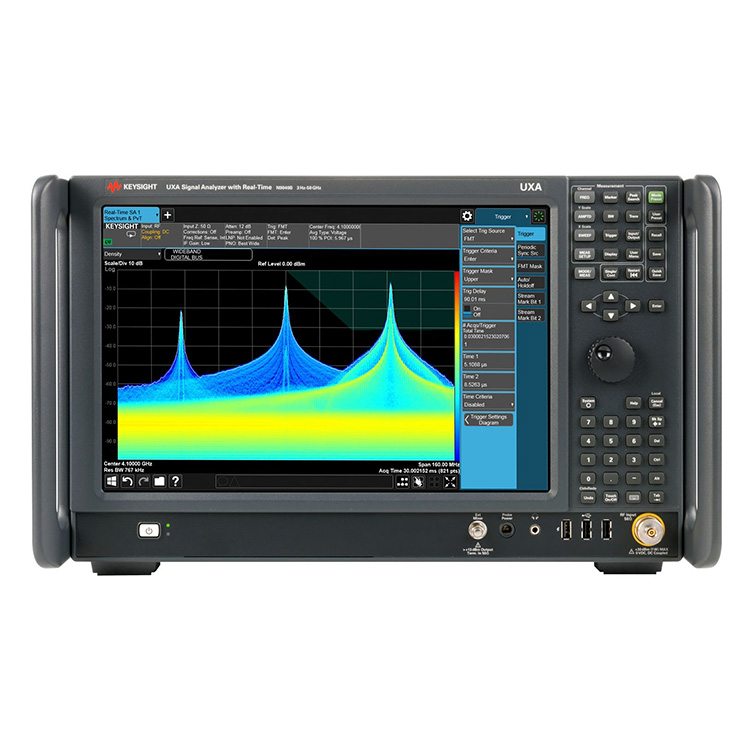

You can rest assured to buy customized N9040B X-Series Signal Analyzers from us. Get wider (up to 1 GHz), deeper views of your most challenging signals.
See the Real Performance of Your Design
The ultimate performance of our UXA signal analyzers lets you characterize today’s most challenging signals — fast-hopping, wideband, transient — in 5G, 802.11ax/ay, satellite, radar, electronic warfare, and more. You will be able to fully understand the purity of your design with industry-leading phase noise and wide spurious-free dynamic range.
Get wider (up to 1 GHz), deeper views of your most challenging signals
Measure the spectral purity of your design with industry-leading phase noise and 78 dBc spurious-free dynamic range across 510 MHz bandwidth
Extend RF input frequency up to 110 GHz with Keysight smart mixers and up to terahertz frequencies with third- party solutions
Capture intermittent signals with gap-free, real-time spectrum analysis
Capture lower-level spurious signals with an improved DANL low noise path
See more and take your design farther with the 14.1-inch screen
| Bandwidth Options: |
25 MHz 40 MHz 255 MHz 510 MHz 1 GHz |
| DANL @1 GHz: | -174 dBm |
| Frequency: | 2 Hz to 50 GHz |
| Frequency Options: | 8.4, 13.6, 26.5, 44, 50 GHz |
| Height: | 6U |
| Maximum Analysis Bandwidth: | 1 GHz |
| Maximum Frequency: | 50 GHz |
| Maximum Real-Time Bandwidth: | 510 MHz |
| Overall Amplitude Accuracy: | ±0.16 dB |
| Performance Level: | ◆◆◆◆◆◆ |
| Phase Noise @1 GHz (10 kHz offset): | -135 dBc / Hz |
| Type: | Benchtop |
