As the professional manufacturer, we would like to provide you high quality M9383B VXG Vector Signal Generators. The M9383B is a large range voltage measurement unit capable of acquiring dynamic positive voltage levels from multiple channels simultaneously.
Leading the Way in Millimeter-Wave Testing

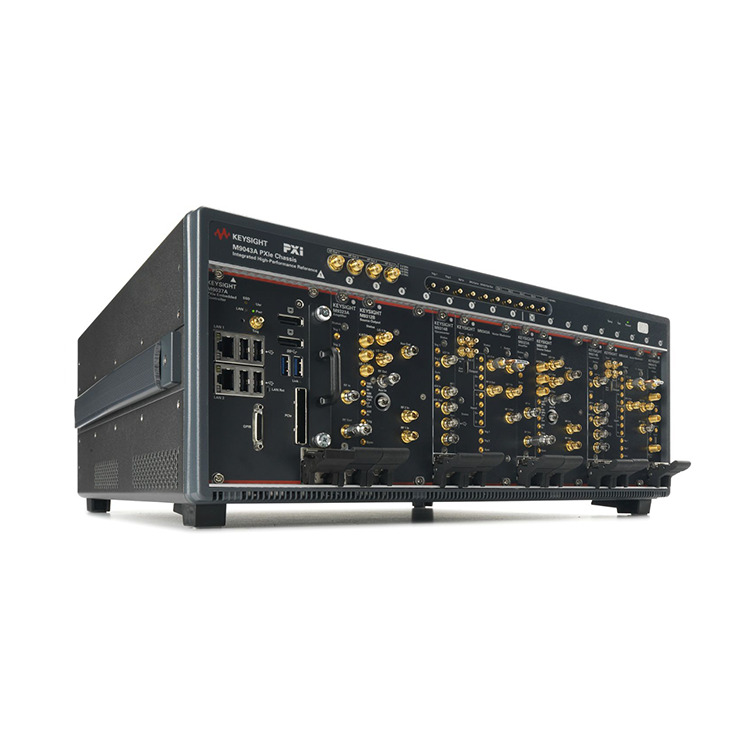

As the professional manufacturer, we would like to provide you high quality M9383B VXG Vector Signal Generators. The M9383B VXG-m is the industry's first dual-channel microwave signal generator providing up to 44 GHz frequency
Wide RF bandwidth (2 GHz)
High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing
Phase coherent local oscillator (LO) and baseband synchronization for multiuser or beamforming MIMO OTA testing
PathWave Signal Generation software supports application-specific and custom signal creation
3GPP 5G NR standard-compliant signals with channel coding and multi-antenna port support
| Bandwidth Options: | 2 GHz |
| Baseband Generator Mode: | Waveform Playback |
| Form Factor: | n/a |
| Frequency: | 1 MHz to 44 GHz |
| Frequency Options: | 44 GHz |
| Frequency Switching (Typical): | 28 ms (meas) |
| Harmonics @1 GHz: | -46 dBc |
| Non-Harmonics @1 GHz: | -50 dBc |
| Output Power @1 GHz: | +20 dBm |
| Performance Level: | ◆◆◆◆◆◇ |
| Phase Noise @1 GHz (20 kHz offset): | -137 dBc/Hz (10 kHz offset) |
| Sweep Mode: | Not available |
| Type: | Vector |
| Waveform Playback Memory: | 1024 MSa |
